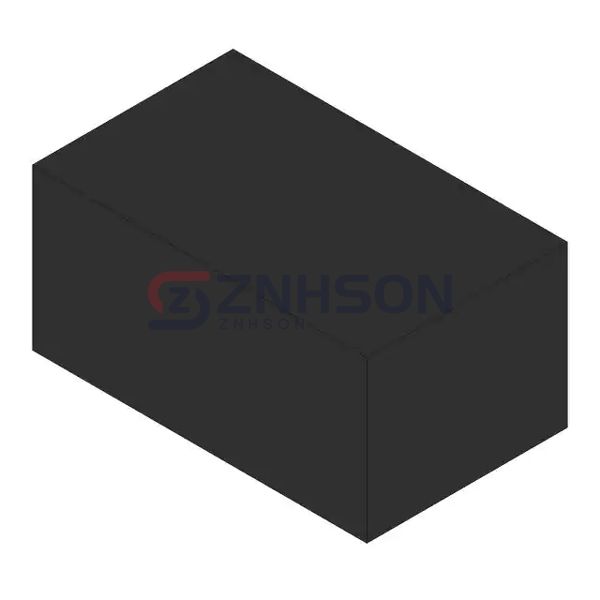

PMZB420UN,315
NXP USA Inc.
NXP USA Inc.
MOSFET N-CH 30V 900MA DFN1006B-3
$0.09
Available to order
Reference Price (USD)
1+
$0.09000
500+
$0.0891
1000+
$0.0882
1500+
$0.0873
2000+
$0.0864
2500+
$0.0855
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PMZB420UN,315 single MOSFET from NXP USA Inc. is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the PMZB420UN,315 is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 900mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 490mOhm @ 200mA, 4.5V
- Vgs(th) (Max) @ Id: 950mV @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 0.98 nC @ 4.5 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 65 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 360mW (Ta), 2.7W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DFN1006B-3
- Package / Case: SC-101, SOT-883
