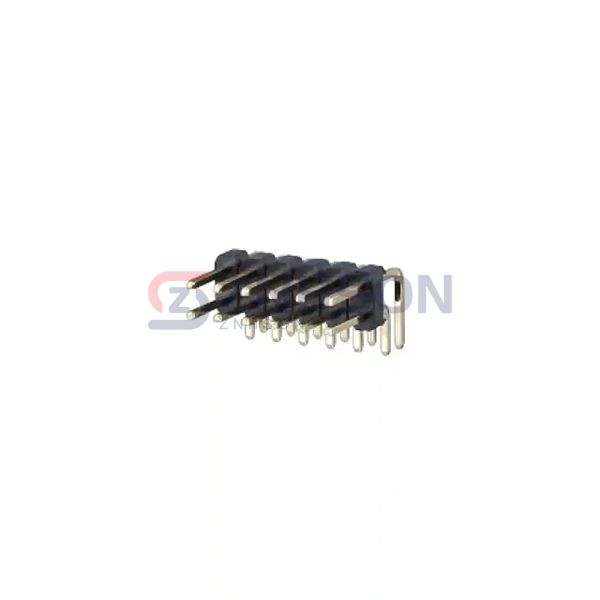

PR20205HBDN
METZ CONNECT USA Inc.
METZ CONNECT USA Inc.
PIN HEADER, THR, DUAL ROW, .100"
$0.43
Available to order
Reference Price (USD)
1+
$0.43000
500+
$0.4257
1000+
$0.4214
1500+
$0.4171
2000+
$0.4128
2500+
$0.4085
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PR20205HBDN by METZ CONNECT USA Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the PR20205HBDN supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. METZ CONNECT USA Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.236" (6.00mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.197" (5.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: -
- Contact Material: Copper Alloy
- Insulation Material: Polyethylene
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
