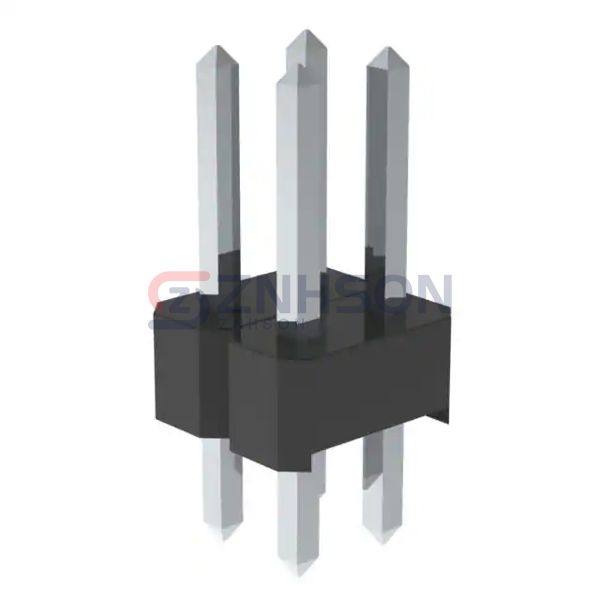

PREC002DAAN-RC
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 4POS 2.54MM
$0.12
Available to order
Reference Price (USD)
1+
$0.12000
10+
$0.11200
25+
$0.08320
50+
$0.07140
100+
$0.06910
250+
$0.05956
500+
$0.05716
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the PREC002DAAN-RC rectangular connector header from Sullins Connector Solutions. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the PREC002DAAN-RC meets the highest industry standards. Sullins Connector Solutions provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.448" (11.39mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
Related Products
Samtec Inc.
TMM-140-06-T-S-SM
Amphenol ICC (FCI)
75160-101-20LF
Preci-Dip
800-V3-020-30-001101
Samtec Inc.
EHT-105-01-SM-D-SM-P-TR
Amphenol ICC (FCI)
76384-408LF
Samtec Inc.
TSM-107-02-F-DH-A
Sullins Connector Solutions
PRPC014DAAN-RC
Samtec Inc.

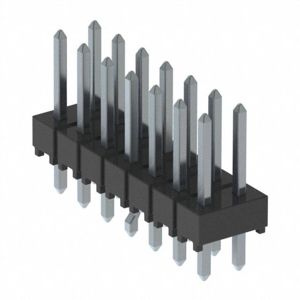

HTSW-107-07-T-D-LL-002
Samtec Inc.

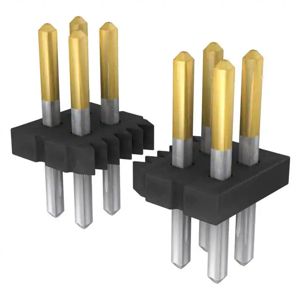

FTS-113-01-L-D
