PREC024DFAN-RC
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 48POS 2.54MM
$0.94
Available to order
Reference Price (USD)
1+
$0.94000
10+
$0.82300
25+
$0.77400
50+
$0.74180
100+
$0.70960
250+
$0.64512
500+
$0.58060
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PREC024DFAN-RC by Sullins Connector Solutions is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Sullins Connector Solutions delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 48
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.537" (13.63mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-104-02-S-SH-A-K-TR
Samtec Inc.
TSM-130-01-S-SH-A-P
Samtec Inc.
TMM-110-01-LM-S
Samtec Inc.
TMMH-115-04-T-D
HARTING
09195206924
Amphenol ICC (FCI)
69190-105HLF
Samtec Inc.
TSM-108-01-L-SH-005
Sullins Connector Solutions

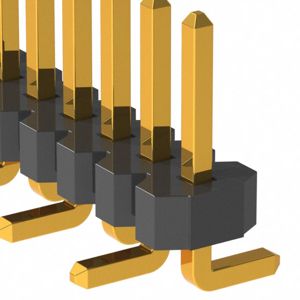

GRPB471VWTD-RC
