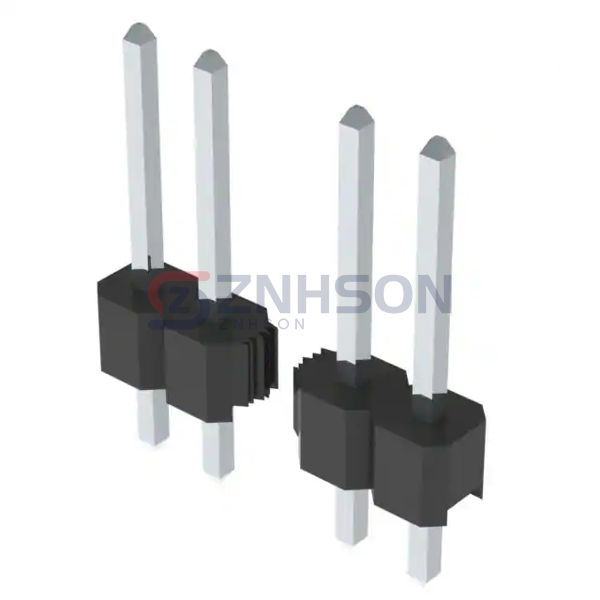

PREC026SFAN-RC
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 26POS 2.54MM
$0.56
Available to order
Reference Price (USD)
1+
$0.56000
10+
$0.52400
25+
$0.47160
50+
$0.41940
100+
$0.40190
250+
$0.36692
500+
$0.34944
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PREC026SFAN-RC from Sullins Connector Solutions is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the PREC026SFAN-RC offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Sullins Connector Solutions for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 26
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.537" (13.63mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
