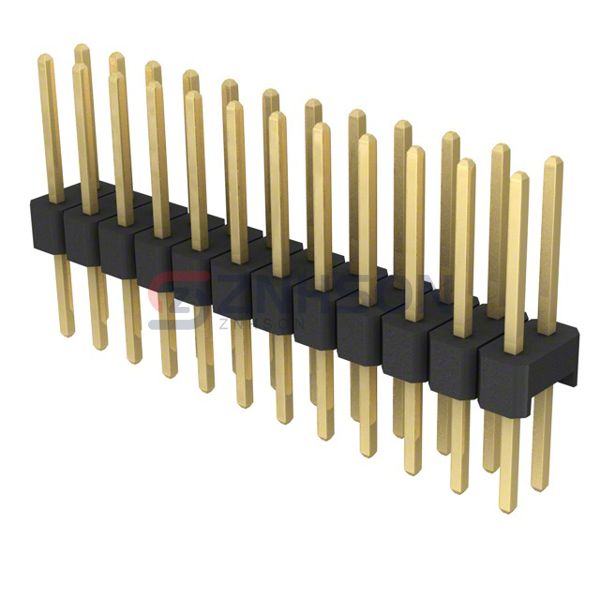

PRPC012DFBN-RC
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 24POS 2.54MM
$0.73
Available to order
Reference Price (USD)
1+
$0.73000
10+
$0.64100
25+
$0.60320
50+
$0.57800
100+
$0.55280
250+
$0.50256
500+
$0.45230
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PRPC012DFBN-RC by Sullins Connector Solutions is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the PRPC012DFBN-RC supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Sullins Connector Solutions ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 24
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.220" (5.58mm)
- Overall Contact Length: 0.637" (16.17mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-130-01-S-SH
TE Connectivity AMP Connectors
3-647609-5
Amphenol ICC (FCI)
69190-103H
Preci-Dip
890-18-038-10-004101
Samtec Inc.
FTS-111-04-L-DV-A
TE Connectivity AMP Connectors
1-794305-1
Samtec Inc.
TMMH-109-04-L-D
Samtec Inc.

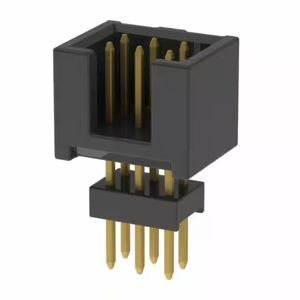

ZSS-103-02-G-D-585
