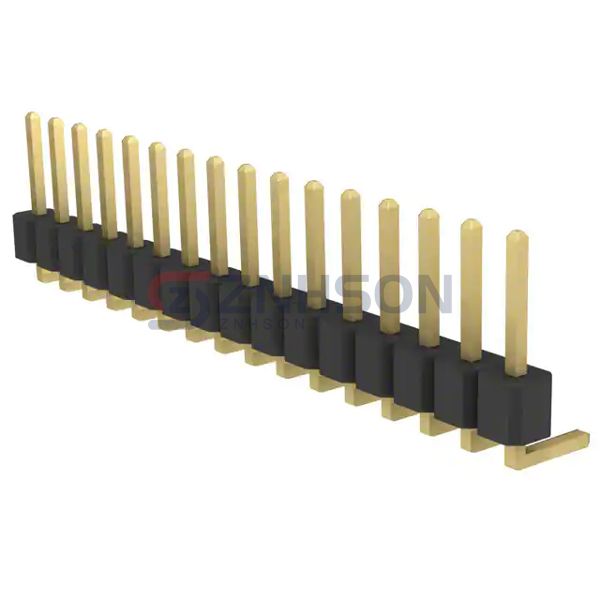

PRPC016SBAN-M71RC
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER R/A 16POS 2.54MM
$0.49
Available to order
Reference Price (USD)
1+
$0.49000
10+
$0.46400
25+
$0.41720
50+
$0.37100
100+
$0.35550
250+
$0.32456
500+
$0.30912
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the PRPC016SBAN-M71RC rectangular connector header by Sullins Connector Solutions. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the PRPC016SBAN-M71RC ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Sullins Connector Solutions for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 16
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: -
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
Related Products
Samtec Inc.
TMM-115-02-F-S
Molex
0717640208
Preci-Dip
353-10-112-00-001101
Samtec Inc.
HTST-105-01-S-DV
Molex
0022289183
Molex
0026482215
Samtec Inc.
IPL1-105-01-S-S-RA-K
TE Connectivity AMP Connectors
146133-4
Samtec Inc.

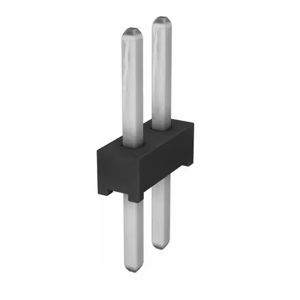

TMM-101-01-T-D
