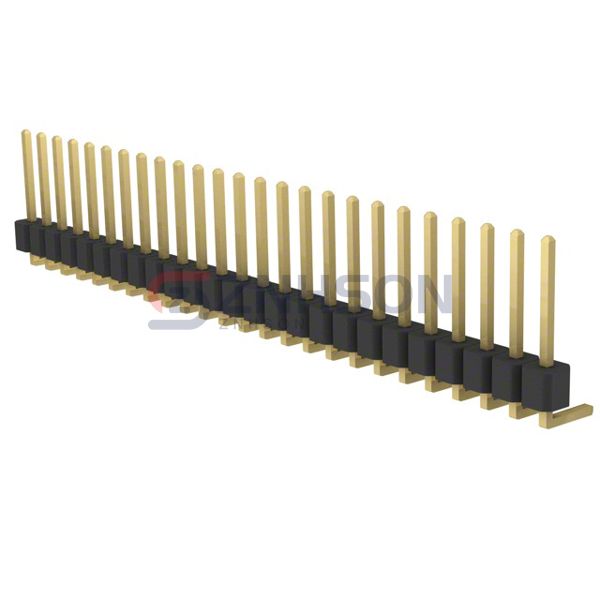

PRPC025SGAN-M71RC
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER R/A 25POS 2.54MM
$0.82
Available to order
Reference Price (USD)
1+
$0.82000
10+
$0.72100
25+
$0.67880
50+
$0.65040
100+
$0.62210
250+
$0.56552
500+
$0.50896
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PRPC025SGAN-M71RC by Sullins Connector Solutions is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the PRPC025SGAN-M71RC supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Sullins Connector Solutions ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 25
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: -
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
Related Products
Samtec Inc.
LTMM-107-02-G-D-RA
Preci-Dip
892-70-078-20-002101
Samtec Inc.

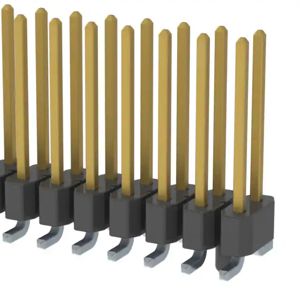

TSM-120-03-S-DV-A-P
TE Connectivity AMP Connectors

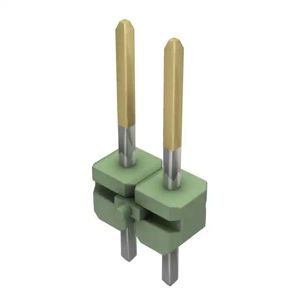

825433-2
Molex

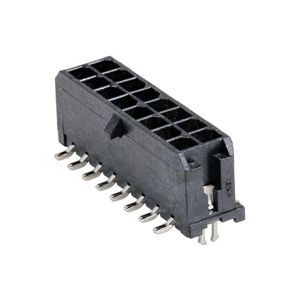

0430451617
TE Connectivity AMP Connectors

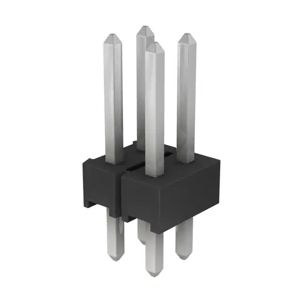

5-146258-2
Samtec Inc.

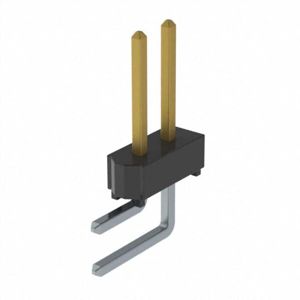

HTSW-101-08-L-D-RA
Samtec Inc.

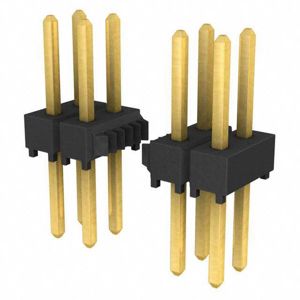

TSW-138-08-G-D
Samtec Inc.

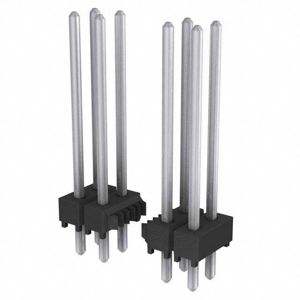

TSW-117-17-T-D
