PRPC029SACN-RC
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 29POS 2.54MM
$0.88
Available to order
Reference Price (USD)
1+
$0.88000
10+
$0.77400
25+
$0.72880
50+
$0.69840
100+
$0.66800
250+
$0.60728
500+
$0.54654
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

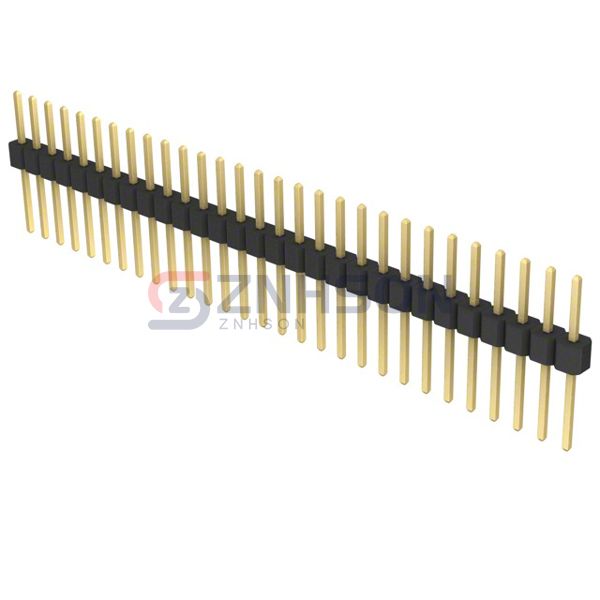

The PRPC029SACN-RC male pin header by Sullins Connector Solutions provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Sullins Connector Solutions guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 29
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.320" (8.13mm)
- Overall Contact Length: 0.648" (16.47mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
