PRPC030DFAN-RC
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 60POS 2.54MM
$1.43
Available to order
Reference Price (USD)
1+
$1.43000
10+
$1.29400
25+
$1.21520
50+
$1.16220
100+
$1.10940
250+
$1.00376
500+
$0.92452
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PRPC030DFAN-RC from Sullins Connector Solutions is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the PRPC030DFAN-RC offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Sullins Connector Solutions for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 60
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.537" (13.63mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
Related Products
HARTING
09195507324
Samtec Inc.
HTSW-106-08-S-S-LA
Mill-Max Manufacturing Corp.
852-90-082-20-001000
Samtec Inc.
TSM-104-01-L-SV-LC
Samtec Inc.
FTSH-125-01-F-DH
Samtec Inc.
TSM-105-03-S-DH-A
TE Connectivity AMP Connectors
1-1318301-2
Samtec Inc.

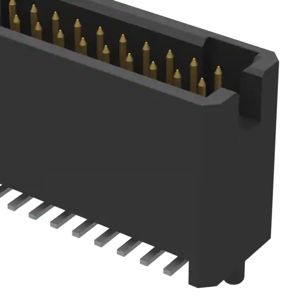

TFC-110-22-F-D-A-K
