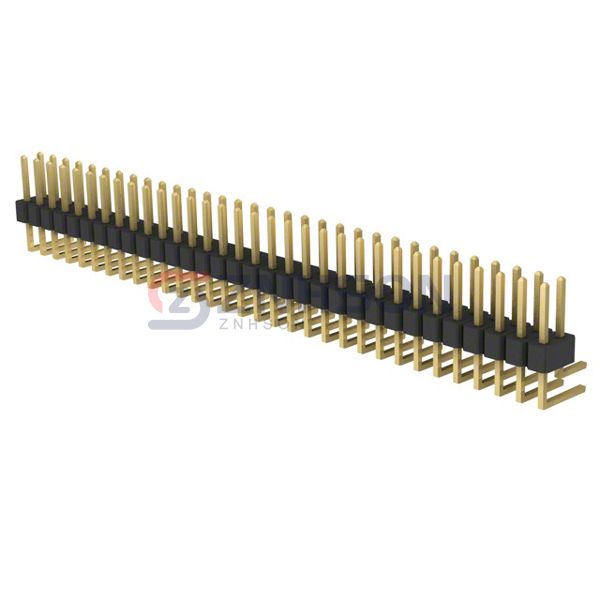

PRPC032DBAN-M71RC
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER R/A 64POS 2.54MM
$2.45
Available to order
Reference Price (USD)
1+
$2.45000
10+
$2.22500
25+
$2.08880
50+
$1.99800
100+
$1.90710
250+
$1.72552
500+
$1.58928
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PRPC032DBAN-M71RC male pin header by Sullins Connector Solutions offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Sullins Connector Solutions for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 64
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: -
- Insulation Height: 0.197" (5.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
Related Products
Molex
5055670631
Samtec Inc.
TST-105-02-G-D
Mill-Max Manufacturing Corp.
399-10-136-10-009000
TE Connectivity AMP Connectors
9-146309-0-38

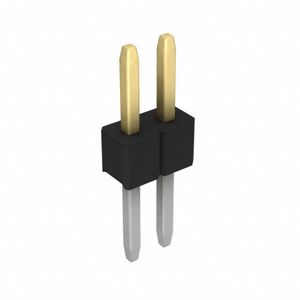

Preci-Dip
890-18-002-10-003101

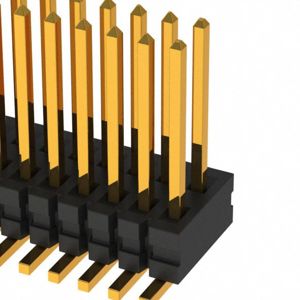

Samtec Inc.
FTE-122-02-G-DV

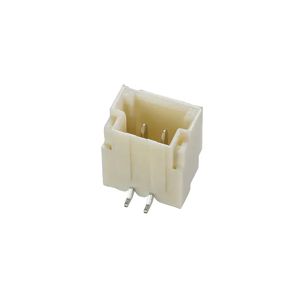

Harwin Inc.
M40-3010246R

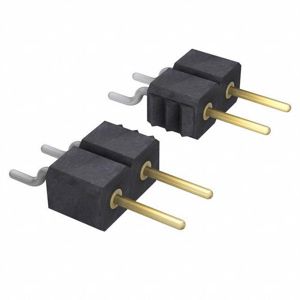

Preci-Dip
800-V3-061-40-001101

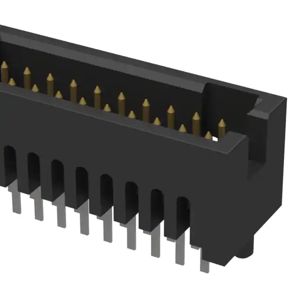

Samtec Inc.
