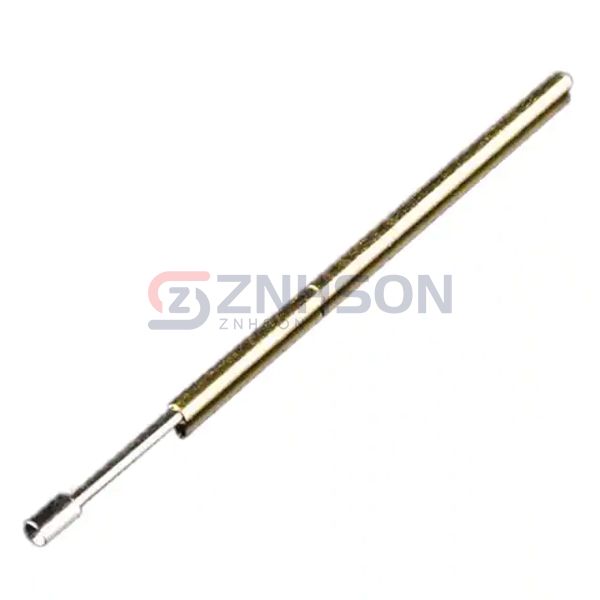

PRT-10114
SparkFun Electronics
SparkFun Electronics
CONTACT SPRING LOADED T/H GOLD
$2.10
Available to order
Reference Price (USD)
1+
$1.95000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Precision meets versatility in SparkFun Electronics's PRT-10114 modular Spring Loaded Contact system. This innovative Pressure Connectors solution allows engineers to mix-and-match plunger heads, spring forces, and housing materials for customized interconnect profiles. The category shines in prototyping applications, research lab equipment, and low-volume manufacturing with quick-ship configurations. Notable implementations include university robotics projects, particle physics detector interfaces, and Mars rover testbed connections. PRT-10114 supports unique requirements like ultra-low-force (10gf) contacts for delicate membrane switches or high-insertion-force (500gf) versions for power distribution modules - all with gold-over-nickel plating for superior corrosion resistance.
Specifications
- Product Status: Active
- Contact Type: Sleeve & Plunger (Pogo Pins)
- Mounting Type: Through Hole
- Maximum Working Height: 1.299" (33.00mm)
- Recommended Working Height: -
- Minimum Working Height: 1.043" (26.50mm)
- Pad Layout Dimension: Circular - 0.040" (1.01mm) (TH)
- Operating Force - Initial: 120gf
- Operating Force - Mid Compression: -
- Plunger Size: 0.059" (1.50mm) Dia
- Features: -
- Mating Cycles: -
- Contact Material: -
- Contact Finish: Gold
- Contact Finish Thickness: -
