PSDH3060CCL1_T0_00001
Panjit International Inc.
Panjit International Inc.

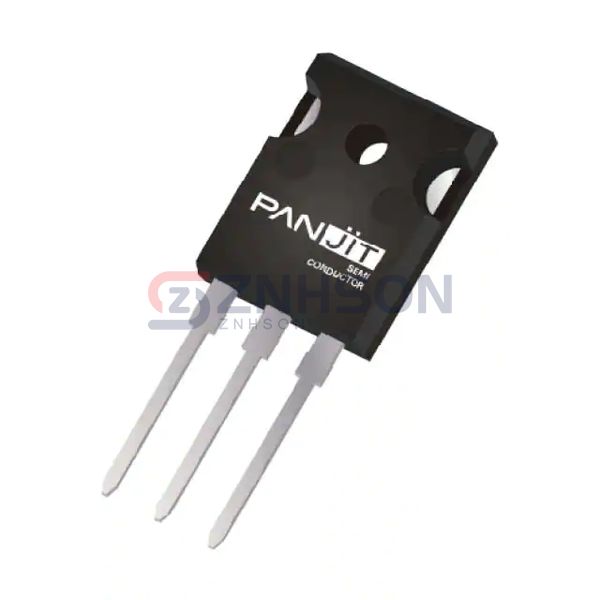

TO-247AD-3LD, FRED
$4.17
Available to order
Reference Price (USD)
1+
$4.17000
500+
$4.1283
1000+
$4.0866
1500+
$4.0449
2000+
$4.0032
2500+
$3.9615
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the PSDH3060CCL1_T0_00001 by Panjit International Inc. represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With Panjit International Inc.'s patented junction design, the PSDH3060CCL1_T0_00001 achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 600 V
- Current - Average Rectified (Io) (per Diode): 15A
- Voltage - Forward (Vf) (Max) @ If: 1.8 V @ 15 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 110 ns
- Current - Reverse Leakage @ Vr: 100 µA @ 600 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247AD
