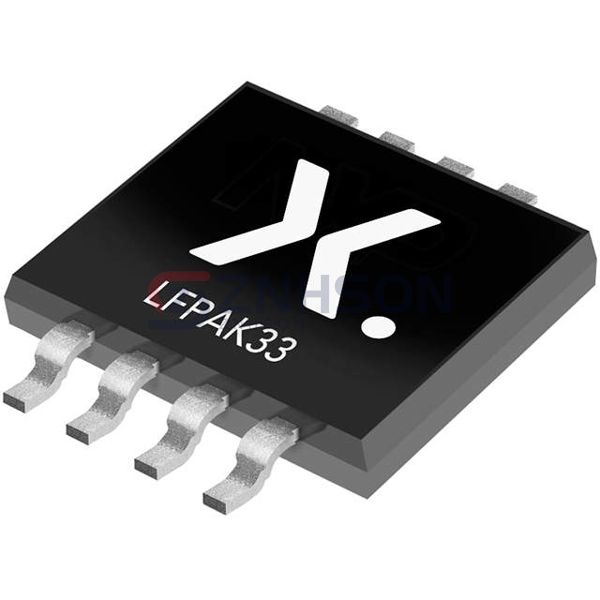

PSMN011-60MSX

Nexperia USA Inc.
PSMN011-60MSX Preview
Nexperia USA Inc.
MOSFET N-CH 60V 61A LFPAK33
$1.01
Available to order
Reference Price (USD)
1,500+
$0.35939
3,000+
$0.32570
7,500+
$0.30324
10,500+
$0.29201
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 60 V
  • Current - Continuous Drain (Id) @ 25°C: 61A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 11.3mOhm @ 15A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 1mA
  • Gate Charge (Qg) (Max) @ Vgs: 23 nC @ 10 V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 1368 pF @ 30 V
  • FET Feature: -
  • Power Dissipation (Max): 91W (Tc)
  • Operating Temperature: -55°C ~ 175°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: LFPAK33
  • Package / Case: SOT-1210, 8-LFPAK33 (5-Lead)
