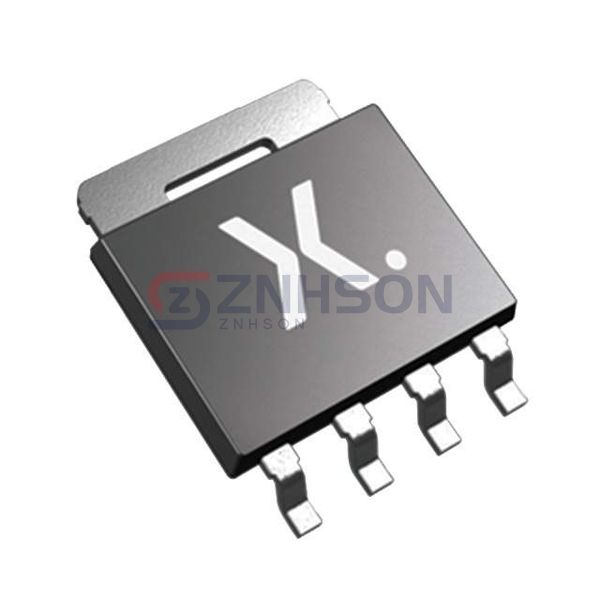

PSMN013-100YSEX
Nexperia USA Inc.
Nexperia USA Inc.
MOSFET N-CH 100V 82A LFPAK56
$2.02
Available to order
Reference Price (USD)
1,500+
$0.63624
3,000+
$0.59382
7,500+
$0.56413
10,500+
$0.54292
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PSMN013-100YSEX single MOSFET from Nexperia USA Inc. is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the PSMN013-100YSEX is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 82A (Tj)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 13mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id: 4V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 75 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 3775 pF @ 50 V
- FET Feature: -
- Power Dissipation (Max): 238W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: LFPAK56, Power-SO8
- Package / Case: SC-100, SOT-669
