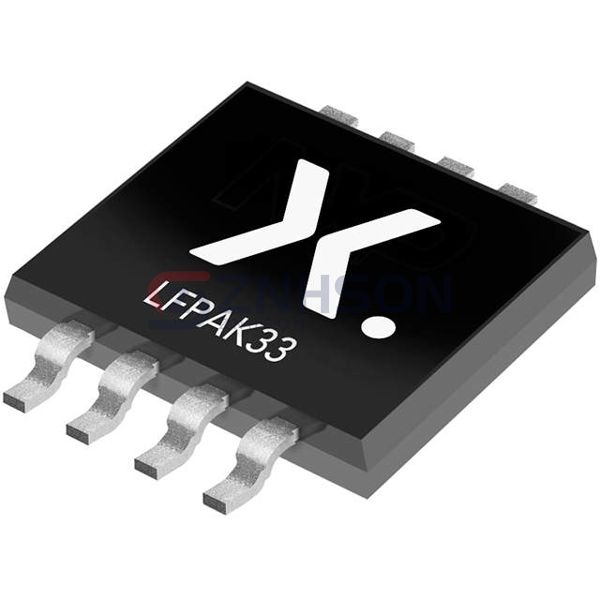

PSMN040-100MSEX
Nexperia USA Inc.
Nexperia USA Inc.
MOSFET N-CH 100V 30A LFPAK33
$1.00
Available to order
Reference Price (USD)
1,500+
$0.42081
3,000+
$0.38136
7,500+
$0.35506
10,500+
$0.34191
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PSMN040-100MSEX single MOSFET from Nexperia USA Inc. is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the PSMN040-100MSEX is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 30A (Tj)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 36.6mOhm @ 10A, 10V
- Vgs(th) (Max) @ Id: 4V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 30 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1470 pF @ 50 V
- FET Feature: -
- Power Dissipation (Max): 91W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: LFPAK33
- Package / Case: SOT-1210, 8-LFPAK33 (5-Lead)
