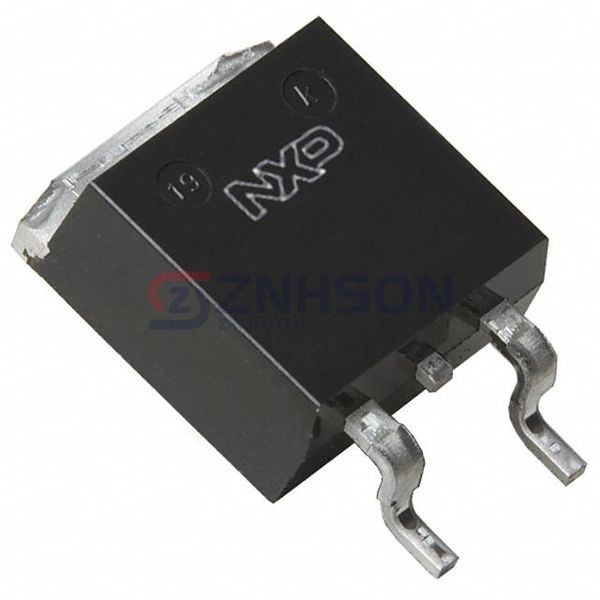

PSMN1R1-40BS,118
Nexperia USA Inc.
Nexperia USA Inc.
MOSFET N-CH 40V 120A D2PAK
$4.02
Available to order
Reference Price (USD)
800+
$1.70676
1,600+
$1.59298
2,400+
$1.51333
5,600+
$1.45644
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PSMN1R1-40BS,118 from Nexperia USA Inc. sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to Nexperia USA Inc.'s PSMN1R1-40BS,118 for their critical applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 120A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 1.3mOhm @ 25A, 10V
- Vgs(th) (Max) @ Id: 4V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 136 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 9710 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 306W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D2PAK
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
