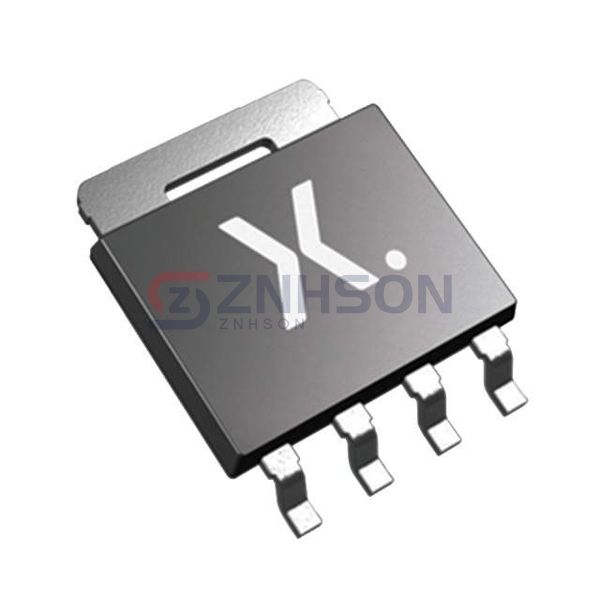

PSMN1R2-25YLDX
Nexperia USA Inc.
Nexperia USA Inc.
MOSFET N-CH 25V 100A LFPAK56
$1.74
Available to order
Reference Price (USD)
1,500+
$0.56677
3,000+
$0.52899
7,500+
$0.50254
10,500+
$0.48365
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PSMN1R2-25YLDX by Nexperia USA Inc. is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the PSMN1R2-25YLDX is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 100A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 1.2mOhm @ 25A, 10V
- Vgs(th) (Max) @ Id: 2.2V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 60.3 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 4327 pF @ 12 V
- FET Feature: Schottky Diode (Body)
- Power Dissipation (Max): 172W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: LFPAK56, Power-SO8
- Package / Case: SC-100, SOT-669
