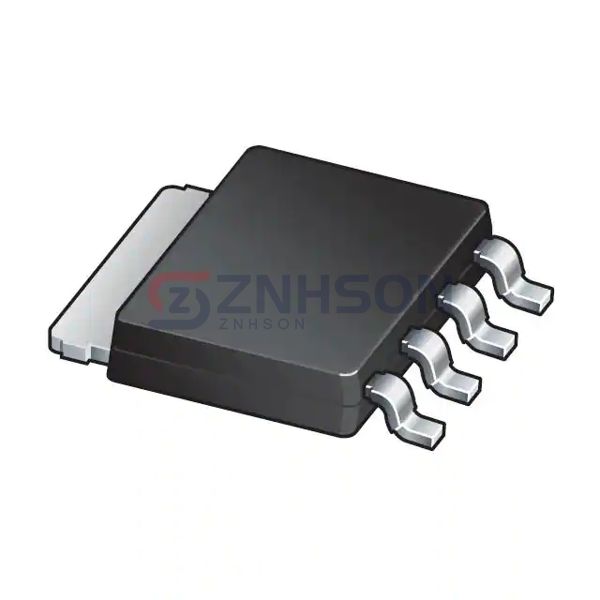

PSMN9R0-25YLC,115
NXP USA Inc.
NXP USA Inc.
MOSFET N-CH 25V 46A LFPAK56
$0.14
Available to order
Reference Price (USD)
1+
$0.14000
500+
$0.1386
1000+
$0.1372
1500+
$0.1358
2000+
$0.1344
2500+
$0.133
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PSMN9R0-25YLC,115 by NXP USA Inc. is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the PSMN9R0-25YLC,115 is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 46A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 9.1mOhm @ 15A, 10V
- Vgs(th) (Max) @ Id: 1.95V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 12 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 694 pF @ 12 V
- FET Feature: -
- Power Dissipation (Max): 34W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: LFPAK56, Power-SO8
- Package / Case: SC-100, SOT-669
