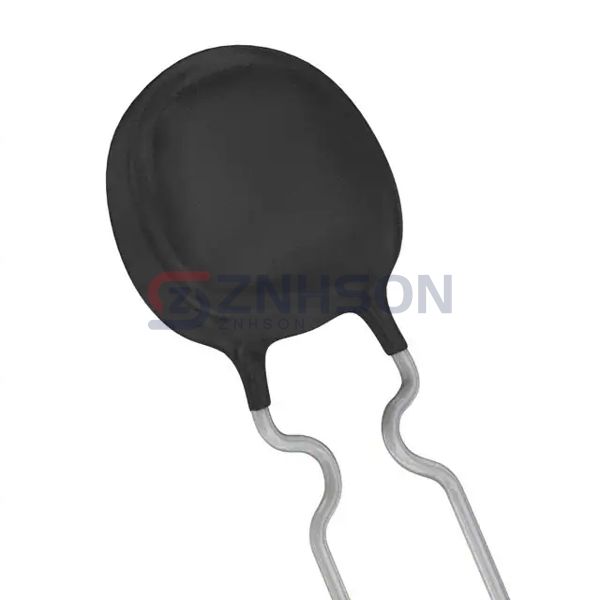

PTCCL09H541DTE
Vishay Beyschlag/Draloric/BC Components
Vishay Beyschlag/Draloric/BC Components
PTC RESET FUSE 30V 540MA RADIAL
$1.85
Available to order
Reference Price (USD)
1+
$1.85000
500+
$1.8315
1000+
$1.813
1500+
$1.7945
2000+
$1.776
2500+
$1.7575
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PTCCL09H541DTE PTC resettable fuse by Vishay Beyschlag/Draloric/BC Components is a versatile solution for all your circuit protection needs. This fuse provides automatic reset functionality, making it a convenient and cost-effective choice for various applications. The PTCCL09H541DTE is commonly used in LED drivers, battery management systems, and industrial controls, where reliable protection is essential. Its high-performance characteristics, including low resistance and excellent thermal stability, make it a standout choice for engineers and designers. Ensure your circuits are protected with the PTCCL09H541DTE.
Specifications
- Product Status: Active
- Type: Ceramic
- Voltage - Max: 30V
- Current - Max: 6 A
- Current - Hold (Ih) (Max): 540 mA
- Current - Trip (It): 810 mA
- Time to Trip: -
- Resistance - Initial (Ri) (Min): -
- Resistance - Post Trip (R1) (Max): -
- Resistance - 25°C (Typ): 1.9 Ohms
- Operating Temperature: -40°C ~ 85°C
- Ratings: -
- Mounting Type: Through Hole
- Package / Case: Radial, Disc
- Size / Dimension: 0.335" Dia x 0.157" T (8.50mm x 4.00mm)
- Height - Seated (Max): 0.532" (13.50mm)
- Thickness (Max): -
- Lead Spacing: 0.197" (5.00mm)
