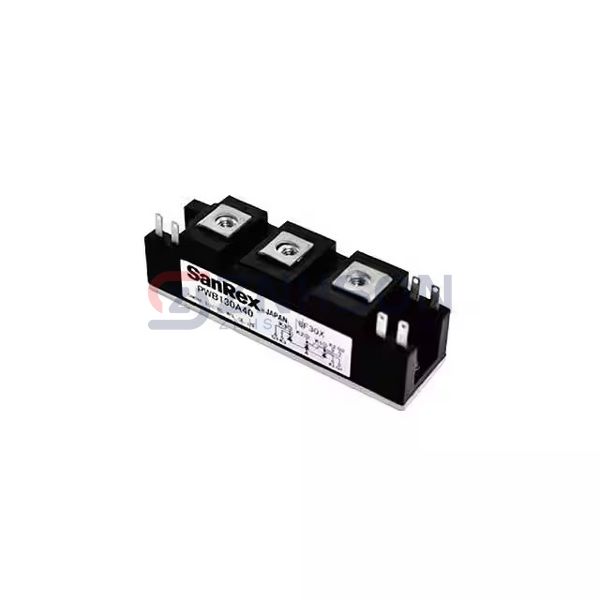

PWB100A40
SanRex Corporation
SanRex Corporation
THYRISTOR MODULE 400V 100A
$77.73
Available to order
Reference Price (USD)
1+
$77.73000
500+
$76.9527
1000+
$76.1754
1500+
$75.3981
2000+
$74.6208
2500+
$73.8435
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PWB100A40 Thyristors - SCRs - Modules by SanRex Corporation offer exceptional performance and reliability in discrete semiconductor applications. Designed for high-power switching and control, these modules are commonly used in electric vehicle powertrains, grid-tie inverters, and heavy machinery. With excellent thermal stability and high surge current capacity, they ensure consistent operation under demanding conditions. SanRex Corporation's dedication to quality and innovation makes these SCR modules a trusted choice for engineers and designers worldwide. Upgrade your systems with these high-performance components today.
Specifications
- Product Status: Active
- Structure: Bridge, 3-Phase - All SCRs
- Number of SCRs, Diodes: 3 SCRs
- Voltage - Off State: 400 V
- Current - On State (It (AV)) (Max): 100 A
- Current - On State (It (RMS)) (Max): 157 A
- Voltage - Gate Trigger (Vgt) (Max): 2 V
- Current - Gate Trigger (Igt) (Max): 150 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 3200A, 3500A
- Current - Hold (Ih) (Max): 70 mA
- Operating Temperature: -30°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
