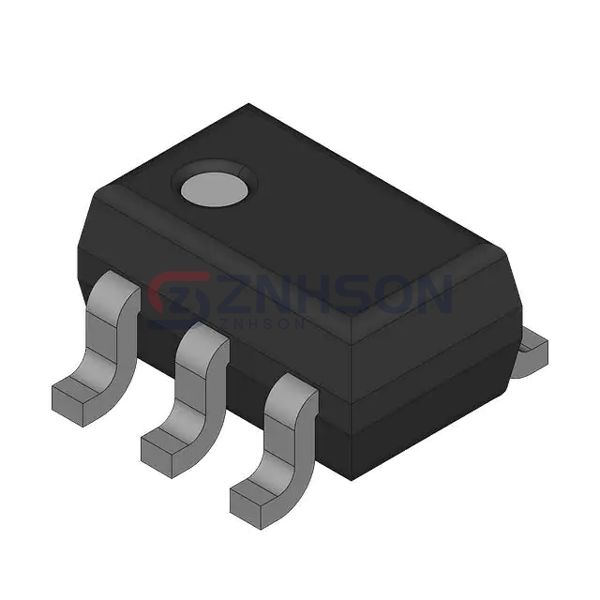

PZU14DB2,115
NXP USA Inc.
NXP USA Inc.
ZENER DIODE, 14V V(Z), 2.14%, 0.
$0.03
Available to order
Reference Price (USD)
1+
$0.03000
500+
$0.0297
1000+
$0.0294
1500+
$0.0291
2000+
$0.0288
2500+
$0.0285
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for precision, the PZU14DB2,115 from NXP USA Inc. is a top-tier Zener diode array in the discrete semiconductor products family. These arrays feature carefully selected and matched Zener diodes that deliver consistent performance across all channels. The product offers significant advantages in circuit design simplification, board space optimization, and system reliability improvement. Common implementations include voltage clamping in motor control systems, protection circuits for aerospace electronics, and reference voltage generation in smart grid equipment. With its excellent power handling capability and stable characteristics, this Zener array is the perfect choice for demanding electronic applications.
Specifications
- Product Status: Active
- Configuration: 2 Independent
- Voltage - Zener (Nom) (Vz): 14 V
- Tolerance: ±2%
- Power - Max: 250 mW
- Impedance (Max) (Zzt): 10 Ohms
- Current - Reverse Leakage @ Vr: 100 nA @ 11 V
- Voltage - Forward (Vf) (Max) @ If: 900 mV @ 10 mA
- Operating Temperature: -55°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: 5-TSSOP, SC-70-5, SOT-353
- Supplier Device Package: 5-TSSOP
