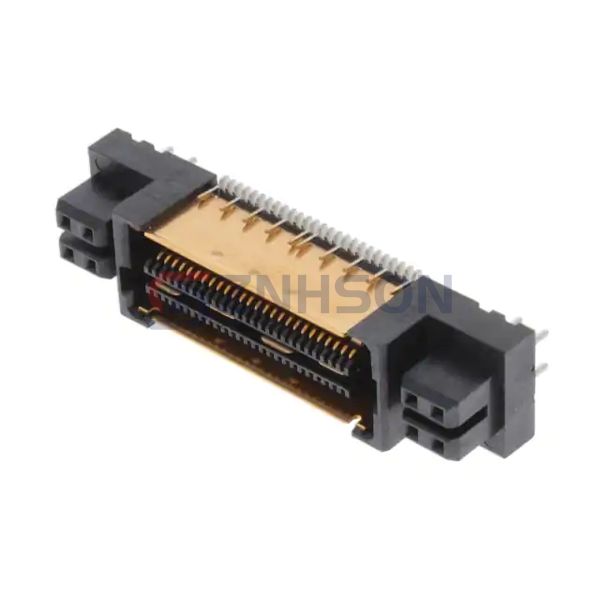

QFSS-016-04.25-H-D-DP-PT4
Samtec Inc.
Samtec Inc.
.635MM DOUBLE ROW SHIELDED TERMI
$29.56
Available to order
Reference Price (USD)
200+
$14.91250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The QFSS-016-04.25-H-D-DP-PT4 by Samtec Inc. is a premium rectangular connector tailored for array and edge-type board-to-board connections. Its mezzanine configuration supports high-speed data transfer and power distribution in compact electronic systems. These connectors are widely used in applications demanding precision and reliability, such as semiconductor testing, military radar systems, and smart grid technology. For example, they play a critical role in modular instrumentation and high-performance computing. With QFSS-016-04.25-H-D-DP-PT4, you can achieve seamless integration and enhanced functionality in your electronic assemblies.
Specifications
- Product Status: Active
- Connector Type: Differential Pair Array, Female
- Number of Positions: 40 (32 + 8 Power)
- Pitch: 0.025" (0.64mm)
- Number of Rows: 2
- Mounting Type: Surface Mount
- Features: Board Guide, Ground Bus (Plane), Power Pins (8), Shielded
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Mated Stacking Heights: 11mm
- Height Above Board: 0.278" (7.06mm)
Related Products
Samtec Inc.
BTH-030-05-F-D-A
Molex
0537480504
Samtec Inc.
QMS-016-05.75-L-D-DP-A-K-TR
Samtec Inc.
QTH-120-03-F-D-A
Panasonic Electric Works
AXK520147YG
Samtec Inc.
QSH-030-01-C-D
TE Connectivity AMP Connectors

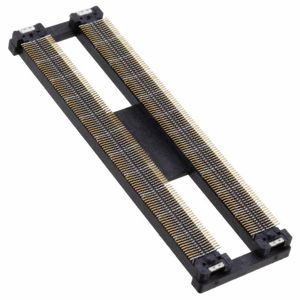

3-1827231-6
Samtec Inc.
ASP-208521-01
Samtec Inc.

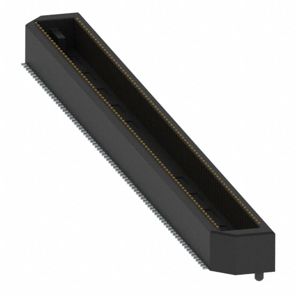

BTE-080-01-L-D-A-K-TR
