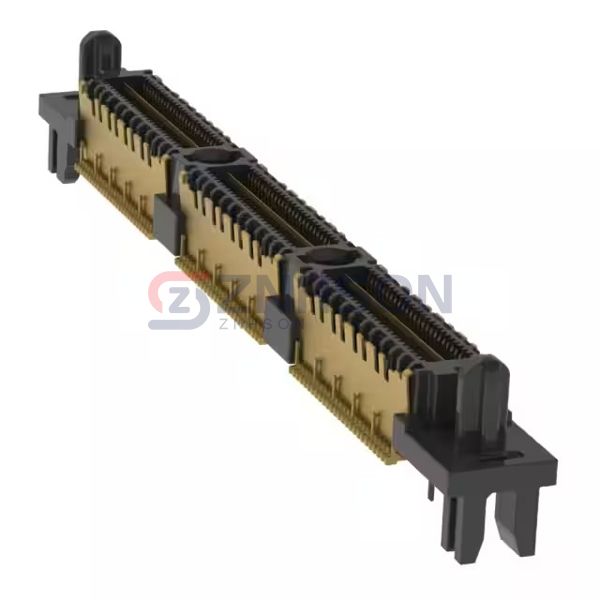

QMSS-078-01-H-D-EM2
Samtec Inc.
Samtec Inc.
CONN HDR 156POS SMD GOLD
$56.87
Available to order
Reference Price (USD)
200+
$36.22100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The QMSS-078-01-H-D-EM2 by Samtec Inc. is a cutting-edge rectangular connector designed for array and edge-type board-to-board applications. Its mezzanine configuration supports high-speed signal transmission and power delivery in compact spaces. These connectors are widely used in consumer electronics, automotive systems, and industrial equipment. For example, they are essential in smartphones, electric vehicle control units, and CNC machines. With QMSS-078-01-H-D-EM2, you get a connector that combines advanced technology with unmatched durability for your most demanding projects.
Specifications
- Product Status: Active
- Connector Type: Header, Outer Shroud Contacts
- Number of Positions: 156
- Pitch: 0.025" (0.64mm)
- Number of Rows: 2
- Mounting Type: Surface Mount
- Features: Board Guide, Ground Bus (Plane), Shielded
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Mated Stacking Heights: 11mm
- Height Above Board: 0.265" (6.73mm)
Related Products
Samtec Inc.
BTE-120-03-L-D-A
Samtec Inc.
ERF8-040-01-L-D-RA-L-TR
Samtec Inc.
FSI-120-03-G-D-AD-SD-K
Samtec Inc.
ERM5-060-05.0-S-DV-K-TR
TE Connectivity AMP Connectors
1761613-5
Panasonic Electric Works

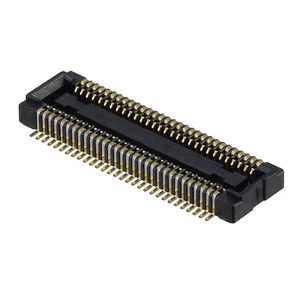

AXK760147G
Hirose Electric Co Ltd

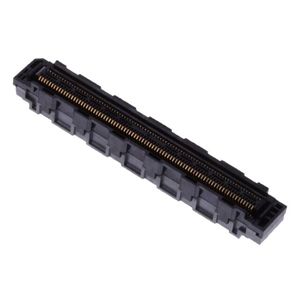

FX10-168IP-52Q-8PH(03)
Amphenol ICC (FCI)

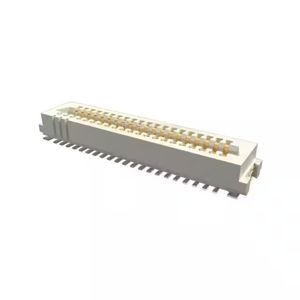

10162581-3134141LF
