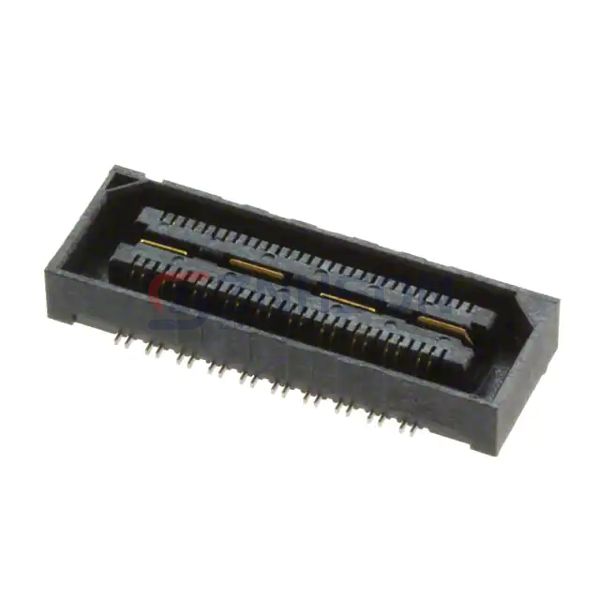

QSH-020-01-F-D-DP-A-TR
Samtec Inc.
Samtec Inc.
CONN DIFF ARRAY RCP 40P SMD GOLD
$7.00
Available to order
Reference Price (USD)
125+
$5.78152
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the QSH-020-01-F-D-DP-A-TR rectangular connector from Samtec Inc. is a top choice for mezzanine board-to-board connections. Its edge-type design ensures reliable interconnections in high-density electronic assemblies. These connectors are built to perform in extreme environments, from industrial automation to aerospace applications. Typical uses include power supplies, motor drives, and satellite communication systems. By incorporating QSH-020-01-F-D-DP-A-TR into your designs, you ensure robust connectivity and long-term reliability.
Specifications
- Product Status: Active
- Connector Type: Differential Pair Array, Female
- Number of Positions: 40
- Pitch: 0.020" (0.50mm)
- Number of Rows: 2
- Mounting Type: Surface Mount
- Features: Board Guide, Ground Bus (Plane)
- Contact Finish: Gold
- Contact Finish Thickness: 3.00µin (0.076µm)
- Mated Stacking Heights: 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
- Height Above Board: 0.128" (3.25mm)
Related Products
Panasonic Electric Works
AXE6E2426
Samtec Inc.
SEAFP-20-05.0-L-04
Amphenol ICC (FCI)
61082-122502LF
Molex
505066-2020
TE Connectivity AMP Connectors
8-1761614-5
Panasonic Electric Works

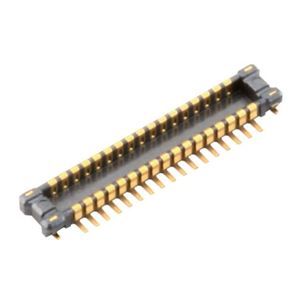

AXF6A3412
Hirose Electric Co Ltd

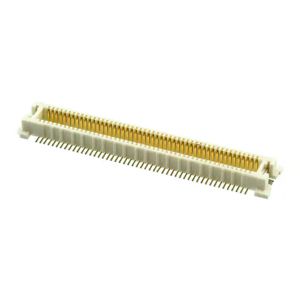

FX11B-100P-SV
Panasonic Electric Works

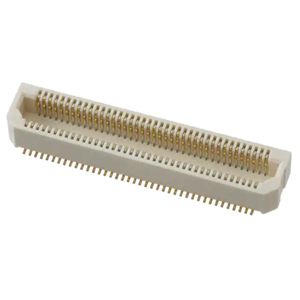

AXK5S80047YG
Samtec Inc.

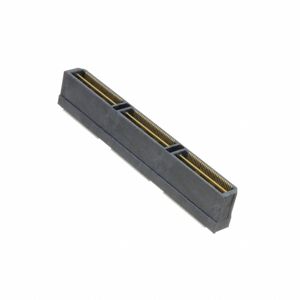

QTH-090-03-L-D-A-K
