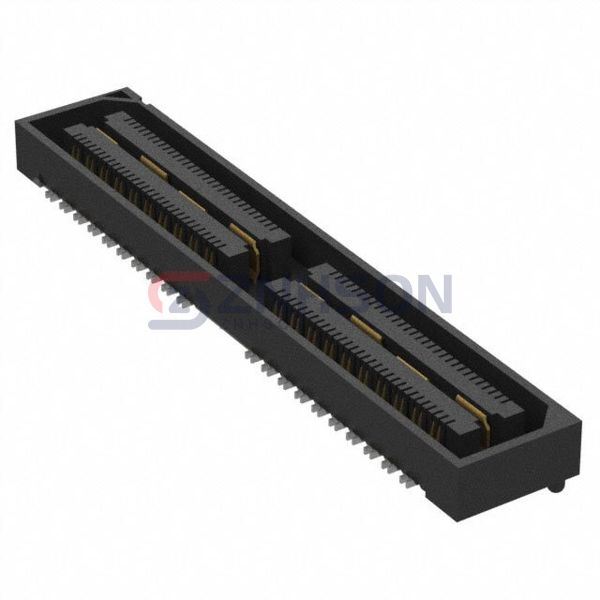

QSH-040-01-C-D-DP-A
Samtec Inc.
Samtec Inc.
CONN DIFF ARRAY RCP 80P SMD GOLD
$22.80
Available to order
Reference Price (USD)
1+
$12.27000
10+
$11.86100
25+
$11.45200
50+
$11.04300
100+
$10.63400
250+
$10.42952
500+
$10.22500
1,000+
$9.81600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the QSH-040-01-C-D-DP-A rectangular connector by Samtec Inc.. Designed for mezzanine (board-to-board) applications, this connector ensures optimal performance in high-density configurations. Its edge-type design facilitates easy installation and secure mating, making it a preferred choice for engineers. These connectors excel in environments requiring robust and repeatable connections, such as military communications, industrial robotics, and renewable energy systems. Specific use cases include embedded computing modules and automated test equipment. With QSH-040-01-C-D-DP-A, you get a dependable connector that meets the highest industry standards.
Specifications
- Product Status: Active
- Connector Type: Differential Pair Array, Female
- Number of Positions: 80
- Pitch: 0.020" (0.50mm)
- Number of Rows: 2
- Mounting Type: Surface Mount
- Features: Board Guide, Ground Bus (Plane)
- Contact Finish: Gold
- Contact Finish Thickness: 50.0µin (1.27µm)
- Mated Stacking Heights: 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
- Height Above Board: 0.128" (3.25mm)
Related Products
Samtec Inc.
LS2-115-01-F-D-TR
TE Connectivity AMP Connectors
5-1775188-0
Panasonic Electric Works
AXK5F34347YG
Hirose Electric Co Ltd
DF40C-30DP-0.4V(51)
Panasonic Electric Works

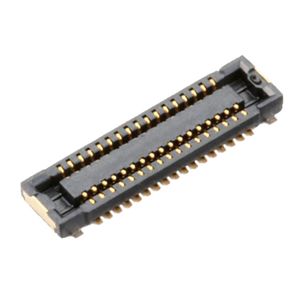

AXF5A3412A
Samtec Inc.

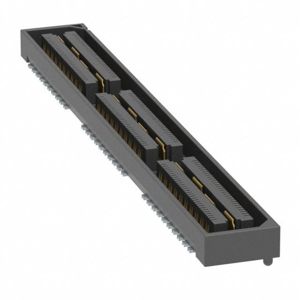

QSH-060-01-L-D-DP-A-K
Molex

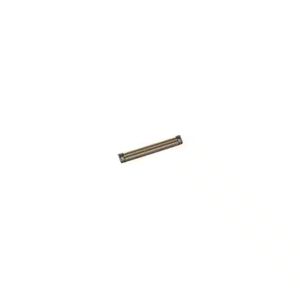

502426-0810
Molex

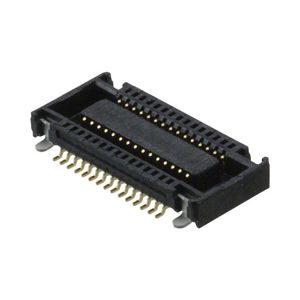

0543630389
