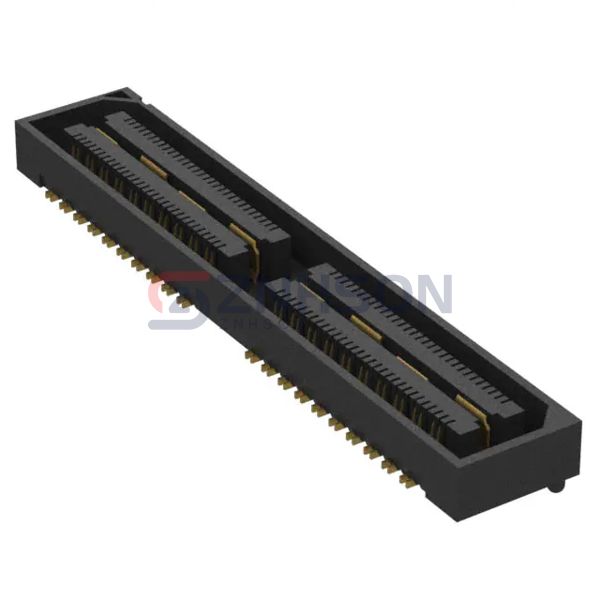

QSH-040-01-H-D-DP-A-K-TR
Samtec Inc.
Samtec Inc.
CONN DIFF ARRAY RCP 80P SMD GOLD
$18.20
Available to order
Reference Price (USD)
1+
$18.20000
500+
$18.018
1000+
$17.836
1500+
$17.654
2000+
$17.472
2500+
$17.29
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The QSH-040-01-H-D-DP-A-K-TR by Samtec Inc. is a high-quality rectangular connector perfect for array and edge-type board-to-board applications. Its mezzanine design provides excellent electrical performance and mechanical stability, even in challenging conditions. These connectors are commonly employed in medical imaging devices, telecommunications infrastructure, and defense electronics. For instance, they are used in MRI machines, base station antennas, and unmanned aerial vehicles. With QSH-040-01-H-D-DP-A-K-TR, you can trust in a connector that meets the rigorous demands of modern technology.
Specifications
- Product Status: Active
- Connector Type: Differential Pair Array, Female
- Number of Positions: 80
- Pitch: 0.020" (0.50mm)
- Number of Rows: 2
- Mounting Type: Surface Mount
- Features: Board Guide, Ground Bus (Plane), Pick and Place
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Mated Stacking Heights: 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
- Height Above Board: 0.128" (3.25mm)
Related Products
Hirose Electric Co Ltd
BM23FR0.6-16DP-0.35V(51)
Panasonic Electric Works
AXK5S24047YG
Samtec Inc.
BTE-080-03-F-D-A-K
TE Connectivity AMP Connectors
1775014-2
Samtec Inc.
SEAM-50-09.0-L-06-2-A-K-TR
Molex
0534810668
Samtec Inc.
ERF8-040-01-S-D-RA-L-TR
Panasonic Electric Works
AXF6A1012A
Amphenol ICC (FCI)

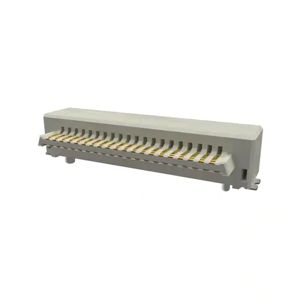

10162583-411141LF
