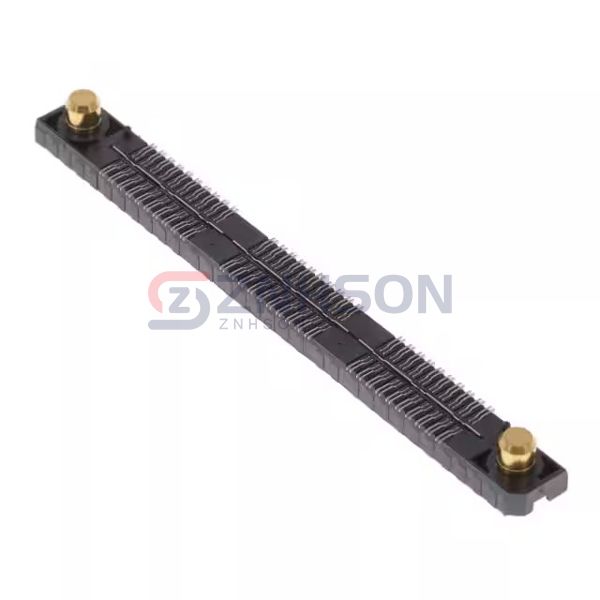

QSH-060-01-L-D-DP-A-RT1
Samtec Inc.
Samtec Inc.
CONN DIFF ARRAY RCPT 120POS SMD
$25.66
Available to order
Reference Price (USD)
200+
$12.61000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The QSH-060-01-L-D-DP-A-RT1 by Samtec Inc. is a high-performance rectangular connector designed for board-to-board applications. These connectors are part of the Arrays, Edge Type, and Mezzanine categories, offering reliable interconnections in compact spaces. With robust construction and precision engineering, they ensure secure and stable connections even in demanding environments. Ideal for high-density electronic assemblies, these connectors feature excellent electrical performance and durability. Common applications include telecommunications equipment, industrial automation systems, and consumer electronics. For instance, they are widely used in server motherboards, IoT devices, and automotive control units. Choose QSH-060-01-L-D-DP-A-RT1 for seamless connectivity and superior performance in your next project.
Specifications
- Product Status: Active
- Connector Type: Differential Pair Array, Female
- Number of Positions: 120
- Pitch: 0.020" (0.50mm)
- Number of Rows: 2
- Mounting Type: Surface Mount
- Features: Board Guide, Ground Bus (Plane), Mounting Flange
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Mated Stacking Heights: 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
- Height Above Board: 0.128" (3.25mm)
Related Products
Samtec Inc.
QTS-050-02-F-D-A
Samtec Inc.
BTH-150-01-H-D-EM2
TE Connectivity AMP Connectors
1-5353185-0
Samtec Inc.
BTH-030-03-F-D
Samtec Inc.

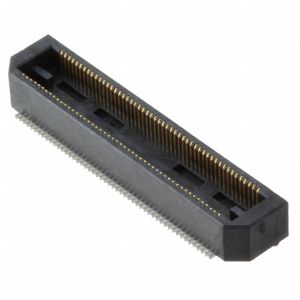

BTH-050-01-F-D-A-K-TR
TE Connectivity Erni

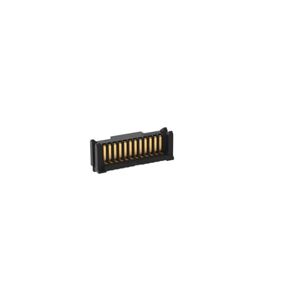

254168
TE Connectivity AMP Connectors

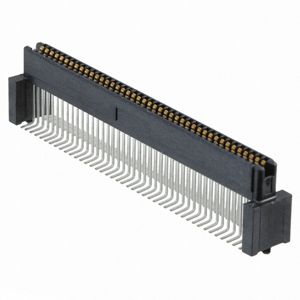

5120524-2
Panasonic Electric Works

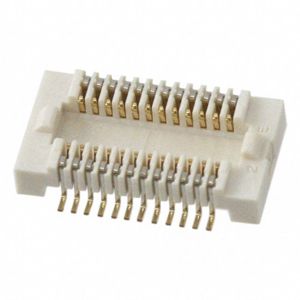

AXK5F20537YG
