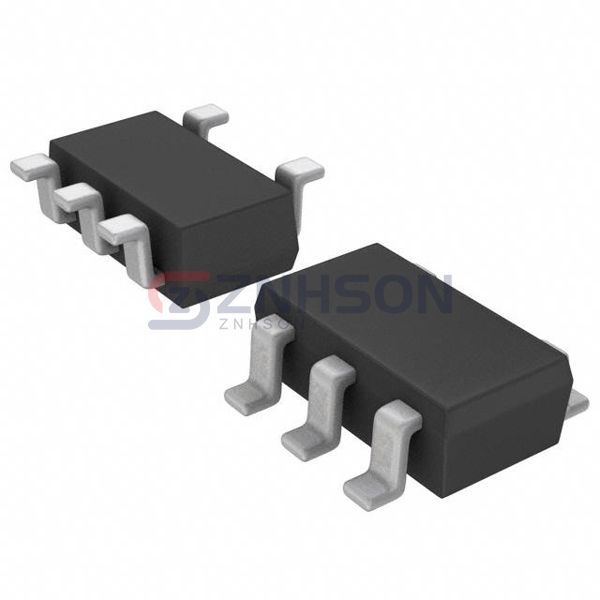

QSZ3TR
Rohm Semiconductor
Rohm Semiconductor
TRANS NPN/PNP 12V 3A 5TSMT
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The QSZ3TR BJT Array from Rohm Semiconductor brings military-grade robustness to commercial applications. With a wide operating temperature range (-55 C to +150 C), this Discrete Semiconductor Product performs flawlessly in downhole drilling equipment and satellite subsystems. Its symmetrical layout simplifies heat sink integration for high-power RF amplifiers. The QSZ3TR undergoes rigorous Q-Class testing to guarantee radiation hardness for aerospace deployments.
Specifications
- Product Status: Obsolete
- Transistor Type: NPN, PNP (Emitter Coupled)
- Current - Collector (Ic) (Max): 3A
- Voltage - Collector Emitter Breakdown (Max): 12V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 30mA, 1.5A
- Current - Collector Cutoff (Max): 100nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 270 @ 500mA, 2V
- Power - Max: 500mW
- Frequency - Transition: 280MHz
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOT-23-5 Thin, TSOT-23-5
- Supplier Device Package: TSMT5
