R123680003
Radiall USA, Inc.
Radiall USA, Inc.

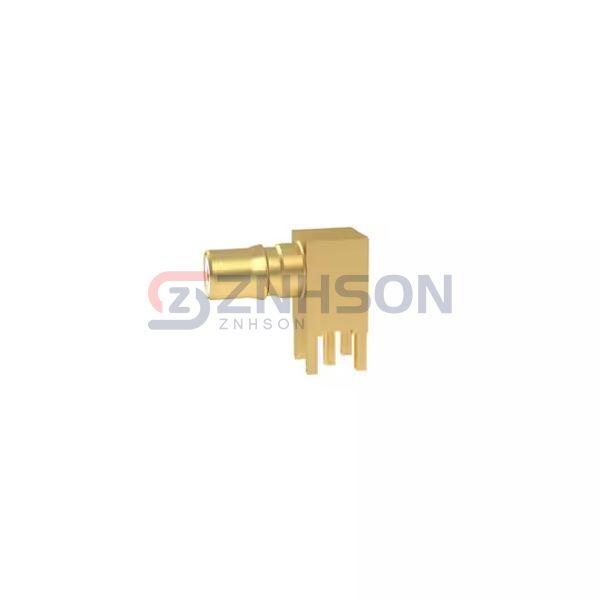

QMA / RIGHT ANGLE PCB RECEPTACLE
$16.18
Available to order
Reference Price (USD)
1+
$16.18200
500+
$16.02018
1000+
$15.85836
1500+
$15.69654
2000+
$15.53472
2500+
$15.3729
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the R123680003 from Radiall USA, Inc. sets new standards in Coaxial Connectors (RF) performance. These connectors utilize ultra-precision machining to achieve consistent 50 or 75 impedance matching across all mating cycles. The product line includes SMA, N-type, TNC, and BNC variants with options for straight, right-angle, and bulkhead mounting. Specialized versions feature phase-matched designs for critical array applications. Key industries served include: Satellite communication ground stations Electronic warfare systems High-speed data acquisition systems Microwave radio links. The R123680003 series stands out with its hybrid design combining the durability of metal connectors with the weight savings of composite materials, ideal for airborne electronic systems.
Specifications
- Product Status: Active
- Connector Style: QMA
- Connector Type: Receptacle, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Panel Mount, Through Hole, Right Angle
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Snap-On
- Frequency - Max: 6 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Gold
- Ingress Protection: IP68 - Dust Tight, Waterproof
- Center Contact Material: Beryllium Copper
