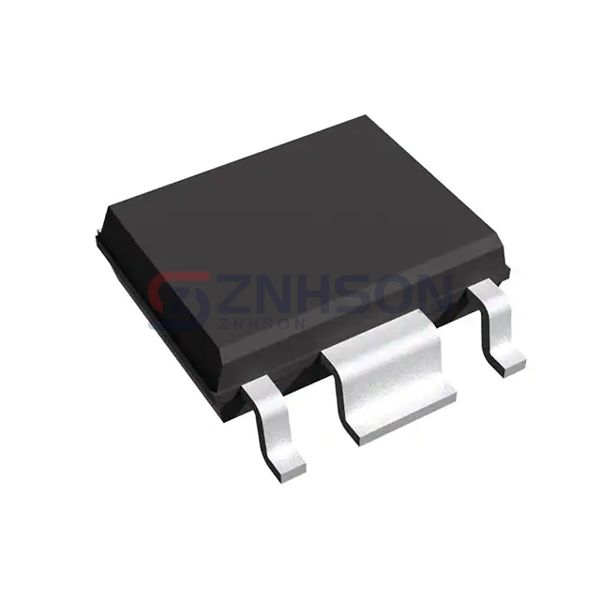

R1513S331D-E2-FE
Nisshinbo Micro Devices Inc.
Nisshinbo Micro Devices Inc.
IC REG LINEAR 3.3V 300MA 6HSOP
$0.78
Available to order
Reference Price (USD)
1+
$0.78387
500+
$0.7760313
1000+
$0.7681926
1500+
$0.7603539
2000+
$0.7525152
2500+
$0.7446765
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The R1513S331D-E2-FE from Nisshinbo Micro Devices Inc. is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 36V
- Voltage - Output (Min/Fixed): 3.3V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.74V @ 300mA
- Current - Output: 300mA
- Current - Quiescent (Iq): 110 µA
- Current - Supply (Max): -
- PSRR: 70dB (100Hz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins
- Supplier Device Package: 6-HSOP-J
