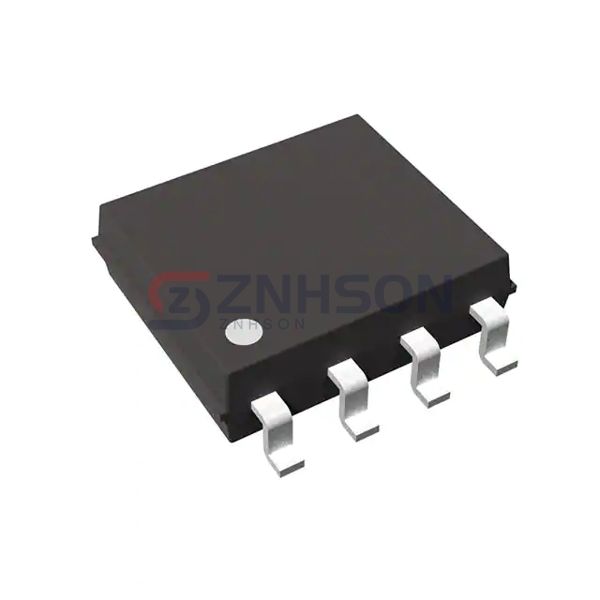

R1540S001B-E2-KE
Nisshinbo Micro Devices Inc.
Nisshinbo Micro Devices Inc.
IC REG LINEAR POS ADJ 70MA 8HSOP
$3.03
Available to order
Reference Price (USD)
1+
$3.03000
500+
$2.9997
1000+
$2.9694
1500+
$2.9391
2000+
$2.9088
2500+
$2.8785
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The R1540S001B-E2-KE from Nisshinbo Micro Devices Inc. is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Adjustable
- Number of Regulators: 1
- Voltage - Input (Max): 42V
- Voltage - Output (Min/Fixed): 2.2V
- Voltage - Output (Max): 14V
- Voltage Dropout (Max): 2.1V @ 70mA
- Current - Output: 70mA
- Current - Quiescent (Iq): 100 µA
- Current - Supply (Max): -
- PSRR: 80dB (100Hz)
- Control Features: Current Limit, Enable
- Protection Features: Over Current, Short Circuit
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.173", 4.40mm Width) Exposed Pad
- Supplier Device Package: 8-HSOP-E
