R222252022
Radiall USA, Inc.
Radiall USA, Inc.

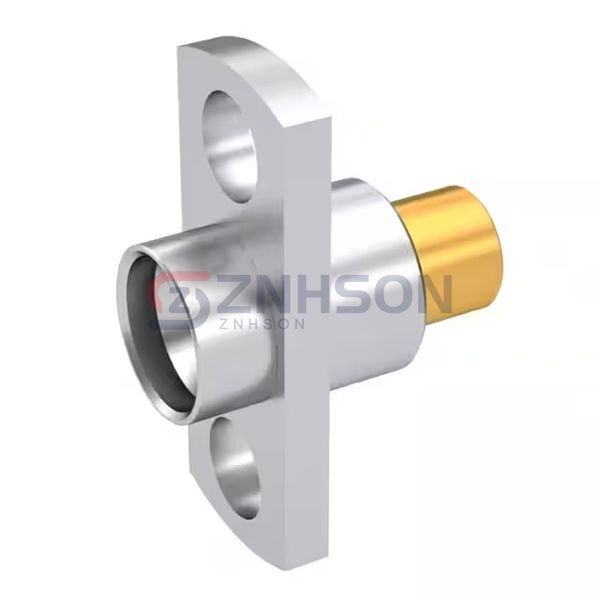

SMP / 2 HOLE FLANGE MALE JACK FU
$26.09
Available to order
Reference Price (USD)
1+
$26.08550
500+
$25.824645
1000+
$25.56379
1500+
$25.302935
2000+
$25.04208
2500+
$24.781225
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The R222252022 from Radiall USA, Inc. represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The R222252022 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: SMP
- Connector Type: Jack, Male Pin
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Panel Mount
- Mounting Feature: Flange
- Cable Group: RG-405 (.085" Semi Rigid)
- Fastening Type: Snap-On
- Frequency - Max: 40 GHz
- Number of Ports: 1
- Features: Full Detent
- Housing Color: Gold, Silver
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
Related Products
TE Connectivity Aerospace, Defense and Marine
1059681-1
TE Connectivity AMP Connectors
134959-1
Molex
0732250081
Rosenberger
51S105-015N5
TE Connectivity AMP Connectors
1052639-1
Radiall USA, Inc.
R222051000
Amphenol RF
901-10721
Amphenol Times Microwave Systems
EZ-200-NMH-75-X
Adam Tech

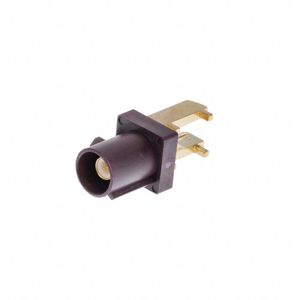

RF55-23D-T-00-50-G-A-SH
