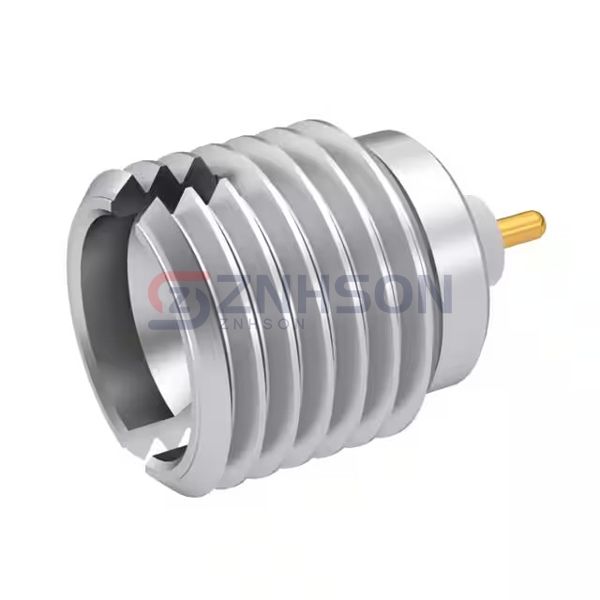

R222561001
Radiall USA, Inc.
Radiall USA, Inc.
SMP M STR FD THD PIN C100
$21.22
Available to order
Reference Price (USD)
1+
$21.22000
500+
$21.0078
1000+
$20.7956
1500+
$20.5834
2000+
$20.3712
2500+
$20.159
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The R222561001 from Radiall USA, Inc. represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The R222561001 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: SMP
- Connector Type: Receptacle, Male Pin
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Through Hole
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Snap-On
- Frequency - Max: 12 GHz
- Number of Ports: 1
- Features: Extended Insulation, Full Detent
- Housing Color: -
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
