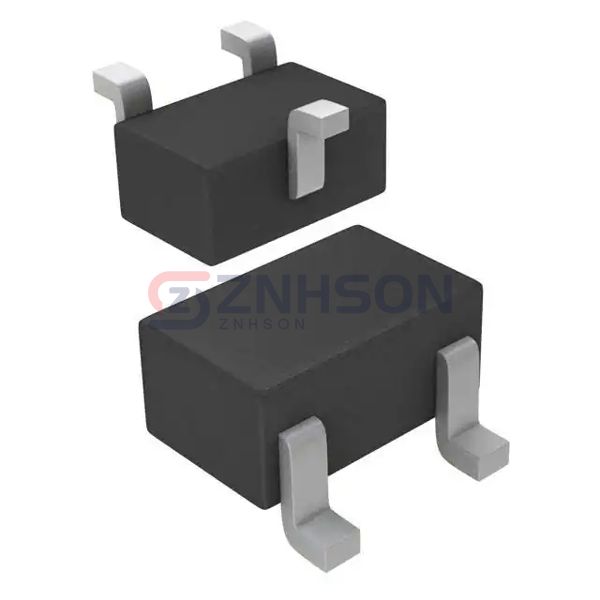

RN2303(TE85L,F)
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
TRANS PREBIAS PNP 50V 0.1A USM
$0.27
Available to order
Reference Price (USD)
1+
$0.30000
10+
$0.27000
25+
$0.19480
100+
$0.15140
250+
$0.09516
500+
$0.08112
1,000+
$0.05516
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The RN2303(TE85L,F) from Toshiba Semiconductor and Storage is a high-performance Bipolar Junction Transistor (BJT) designed for precision applications. This pre-biased transistor simplifies circuit design by integrating resistors, reducing component count and board space. Ideal for switching and amplification, it offers excellent thermal stability and low saturation voltage. Common applications include LED drivers, relay switches, and audio amplifiers. Trust Toshiba Semiconductor and Storage's expertise in discrete semiconductors for reliable performance in industrial and consumer electronics.
Specifications
- Product Status: Active
- Transistor Type: PNP - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 22 kOhms
- Resistor - Emitter Base (R2): 22 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 70 @ 10mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 250µA, 5mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 200 MHz
- Power - Max: 100 mW
- Mounting Type: Surface Mount
- Package / Case: SC-70, SOT-323
- Supplier Device Package: SC-70
Related Products
Rohm Semiconductor
DTB113EKT146
Diodes Incorporated
DDTA114WUA-7
Diodes Incorporated
DDTC125TE-7
Nexperia USA Inc.
PDTC124TM,315
Toshiba Semiconductor and Storage
RN1108,LF(CT
Rohm Semiconductor

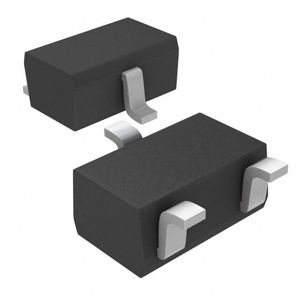

DTC115GU3T106
Infineon Technologies

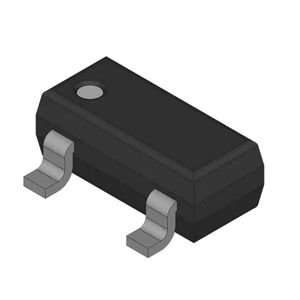

BCR135WH6327XTSA1
onsemi

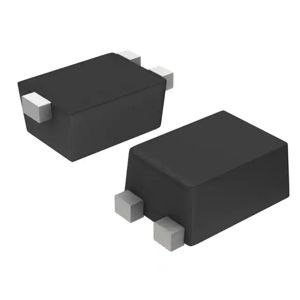

NSBA113EF3T5G
