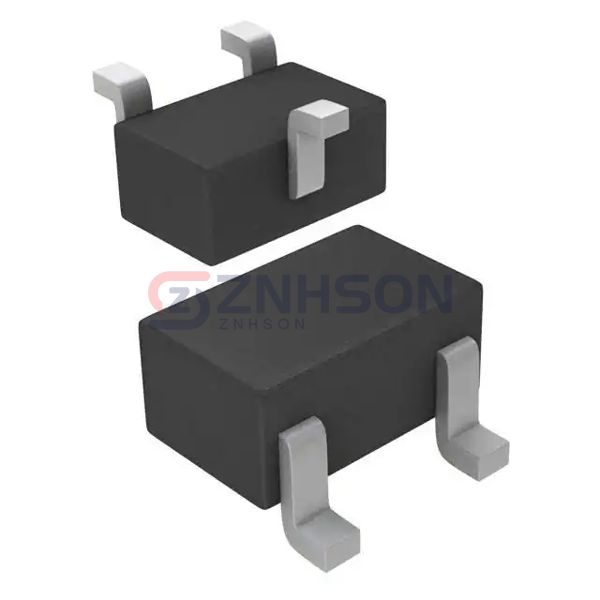

RN2306,LXHF
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
AUTO AEC-Q SINGLE PNP , R1=4.7KO
$0.40
Available to order
Reference Price (USD)
1+
$0.40000
500+
$0.396
1000+
$0.392
1500+
$0.388
2000+
$0.384
2500+
$0.38
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the RN2306,LXHF Toshiba Semiconductor and Storage's answer to modern circuit design challenges. This pre-biased bipolar transistor combines 2N3904 compatibility with enhanced thermal characteristics. Key applications include: Electric vehicle charging stations Industrial IoT gateways Smart meter modules With 100% automated production testing, each unit delivers military-grade reliability for critical infrastructure projects.
Specifications
- Product Status: Active
- Transistor Type: PNP - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 4.7 kOhms
- Resistor - Emitter Base (R2): 47 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 10mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 250µA, 5mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 200 MHz
- Power - Max: 100 mW
- Mounting Type: Surface Mount
- Package / Case: SC-70, SOT-323
- Supplier Device Package: SC-70
