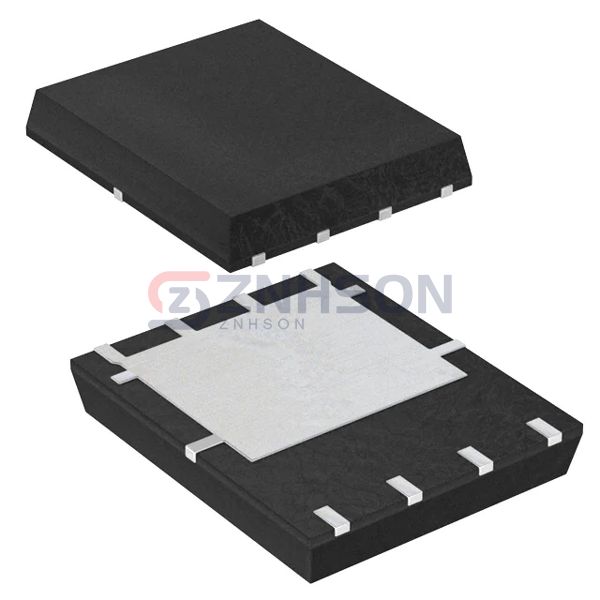

RS1G120MNTB
Rohm Semiconductor
Rohm Semiconductor
MOSFET N-CH 40V 12A 8HSOP
$0.61
Available to order
Reference Price (USD)
2,500+
$0.17050
5,000+
$0.15950
12,500+
$0.15400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the RS1G120MNTB by Rohm Semiconductor, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The RS1G120MNTB stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Rohm Semiconductor.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 12A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 16.2mOhm @ 12A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 9.4 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 570 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 3W (Ta), 25W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-HSOP
- Package / Case: 8-PowerTDFN
Related Products
onsemi
FDY101PZ
Alpha & Omega Semiconductor Inc.
AOD2N60A
STMicroelectronics
STP6N62K3
Microchip Technology
APT20M11JVFR
Fairchild Semiconductor
SFR9224TM
IXYS
IXTP340N04T4
IXYS

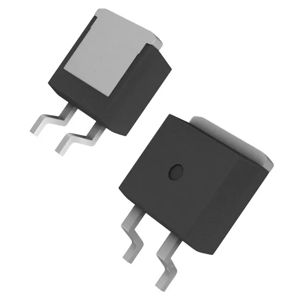

IXTA90N075T2
Rohm Semiconductor
RD3P100SNTL1
Rohm Semiconductor

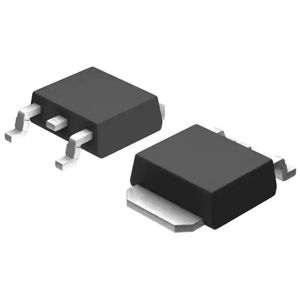

RD3L150SNTL1
