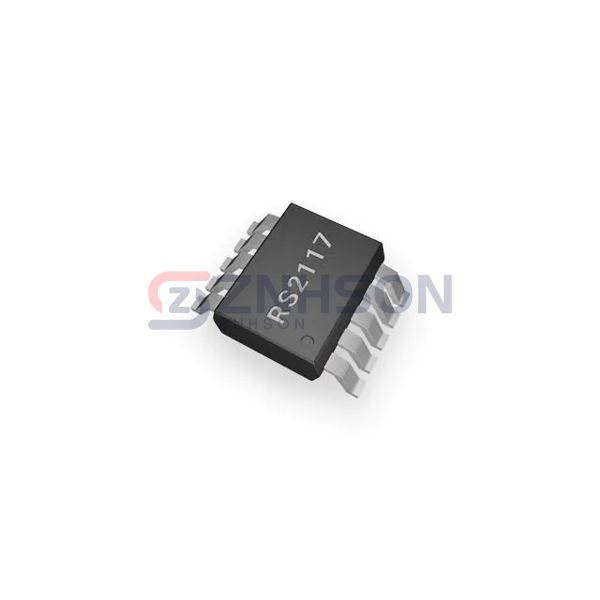

RS2117YN
Runic Technology
Runic Technology
IC SWITCH DUAL SPDT 10MSOP
$0.89
Available to order
Reference Price (USD)
1+
$0.89000
500+
$0.8811
1000+
$0.8722
1500+
$0.8633
2000+
$0.8544
2500+
$0.8455
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with Runic Technology's RS2117YN, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The RS2117YN meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 7Ohm
- Channel-to-Channel Matching (ΔRon): 150mOhm (Typ)
- Voltage - Supply, Single (V+): 2.5V ~ 5.5V
- Voltage - Supply, Dual (V±): 2.5V ~ 5.5V
- Switch Time (Ton, Toff) (Max): 15ns (Typ), 10ns (Typ)
- -3db Bandwidth: 400MHz
- Charge Injection: 15pC
- Channel Capacitance (CS(off), CD(off)): 10pF
- Current - Leakage (IS(off)) (Max): 1µA
- Crosstalk: -52dB @ 10MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
- Supplier Device Package: 10-MSOP
