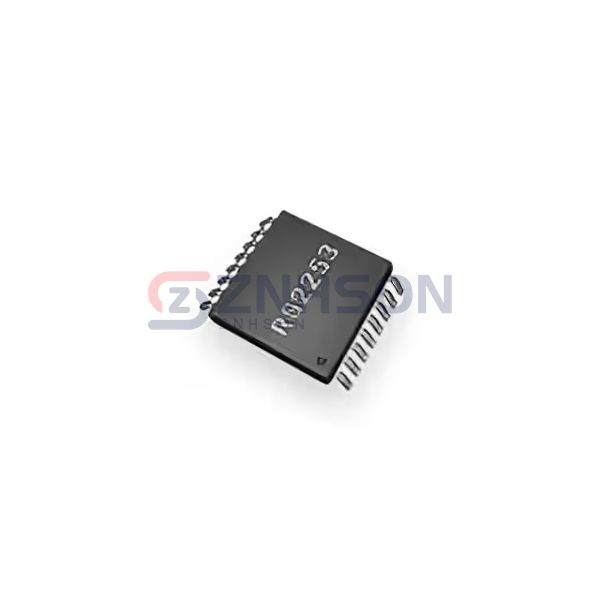

RS2253XTSS16
Runic Technology
Runic Technology
IC MUX/DEMUX TRIPLE 2X1 16TSSOP
$0.49
Available to order
Reference Price (USD)
1+
$0.49000
500+
$0.4851
1000+
$0.4802
1500+
$0.4753
2000+
$0.4704
2500+
$0.4655
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the RS2253XTSS16 - Runic Technology's most advanced configurable analog switch IC, featuring programmable channel sequencing and built-in self-test capabilities. As a star product in our Interface components range, it offers 64:1 multiplexing ratio in compact QFN packages. The RS2253XTSS16 enables next-generation designs in quantum computing control systems, telescope focal plane arrays, and neural interface prosthetics. Its dynamic on-resistance compensation technology maintains consistent performance across temperature variations. Other notable applications include: particle accelerator beam controls, underwater sonar arrays, and high-energy physics detector readout systems.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 3
- On-State Resistance (Max): 65Ohm
- Channel-to-Channel Matching (ΔRon): 1.5Ohm (Typ)
- Voltage - Supply, Single (V+): 2.5V ~ 5.5V
- Voltage - Supply, Dual (V±): 2.5V ~ 5.5V
- Switch Time (Ton, Toff) (Max): 90ns (Typ), 70ns (Typ)
- -3db Bandwidth: 180MHz
- Charge Injection: 6pC
- Channel Capacitance (CS(off), CD(off)): 12.7pF
- Current - Leakage (IS(off)) (Max): 100nA
- Crosstalk: -110dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 16-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package: 16-TSSOP
