S-814A42AMC-BDGT2G
ABLIC Inc.
ABLIC Inc.
IC REG LINEAR 4.2V 135MA SOT23-5
$0.35
Available to order
Reference Price (USD)
1,000+
$0.33280
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the S-814A42AMC-BDGT2G linear voltage regulator IC by ABLIC Inc., a standout product in our PMIC - Voltage Regulators - Linear category. This IC provides precise voltage regulation with ultra-low noise output, making it perfect for analog and RF circuits. The device features excellent PSRR (Power Supply Rejection Ratio) performance and comes in various package options to suit different design requirements. Linear regulators such as this S-814A42AMC-BDGT2G model are extensively used in consumer electronics (smartphones, tablets), IoT devices, and aerospace applications where consistent voltage without switching noise is essential. Its robust design ensures reliable operation in harsh environments with wide temperature ranges.
Specifications
- Product Status: Not For New Designs
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 10V
- Voltage - Output (Min/Fixed): 4.2V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.26V @ 60mA
- Current - Output: 135mA
- Current - Quiescent (Iq): 500 nA
- Current - Supply (Max): 40 µA
- PSRR: 45dB (100Hz)
- Control Features: Enable
- Protection Features: Short Circuit
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: SC-74A, SOT-753
- Supplier Device Package: SOT-23-5
Related Products
Nisshinbo Micro Devices Inc.
RP201K191D-TR
NXP USA Inc.
NX1117C50Z,115
ABLIC Inc.
S-1131B17UA-N4CTFU
ABLIC Inc.
S-1132B47-M5T1G
Diodes Incorporated
AP7370-30SA-7
ABLIC Inc.
S-13R1B27-A4T2U3
Nisshinbo Micro Devices Inc.

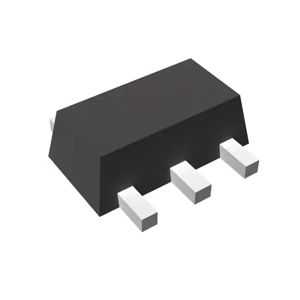

R1155H050B-T1-FE
