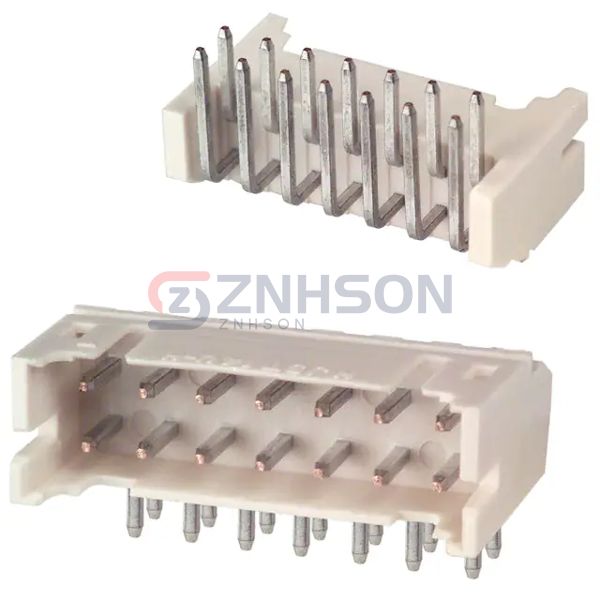

S14B-PHDSS(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER R/A 14POS 2MM
$0.69
Available to order
Reference Price (USD)
1+
$0.65000
10+
$0.61200
100+
$0.46950
500+
$0.40822
1,000+
$0.33678
5,000+
$0.29596
10,000+
$0.27555
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The S14B-PHDSS(LF)(SN) by JST Sales America Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the S14B-PHDSS(LF)(SN) supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. JST Sales America Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.114" (2.90mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.197" (5.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: -
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 3A
- Voltage Rating: 250V
Related Products
Molex
0702871220
Samtec Inc.
HTSW-107-08-H-S
Molex

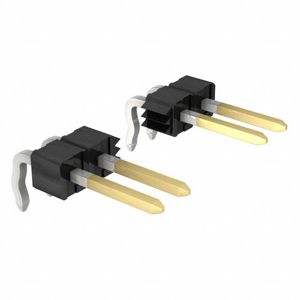

0022289102
Molex

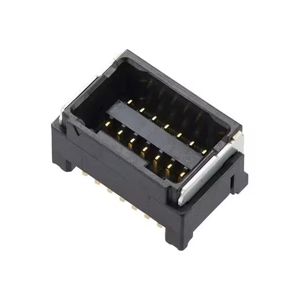

5054333621
Samtec Inc.

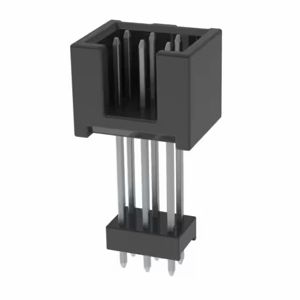

ZSS-103-04-T-D-835
Samtec Inc.

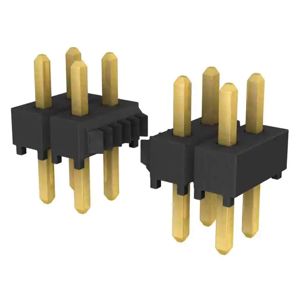

TSW-108-06-G-D
Amphenol ICC (FCI)

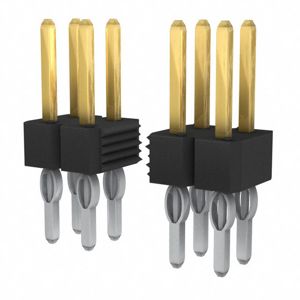

93690-103-16LF
Samtec Inc.

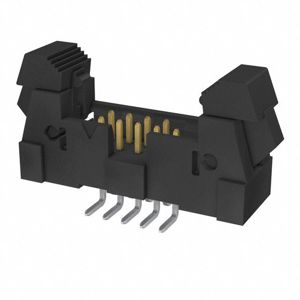

EHT-105-01-S-D-SM-10-K-TR
