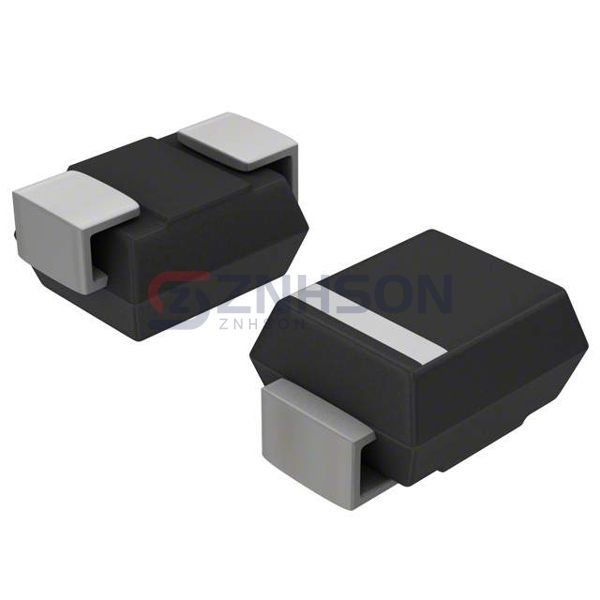

S1B-F
SMC Diode Solutions
SMC Diode Solutions
SMT GLASS PASSIVATED RECTIFIER
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the S1B-F single rectifier diode by SMC Diode Solutions, a key component in the Diodes - Rectifiers - Single classification. This diode excels in providing stable and efficient rectification for circuits requiring precise voltage control. With its high surge current capability and low leakage, it is perfect for use in power management systems, LED drivers, and battery chargers. The S1B-F is widely utilized in telecommunications, renewable energy systems, and medical devices, ensuring reliable operation under varying load conditions. Choose SMC Diode Solutions's S1B-F for unmatched quality and performance in discrete semiconductor solutions.
Specifications
- Product Status: Obsolete
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 1 A
- Speed: Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 2.5 µs
- Current - Reverse Leakage @ Vr: 5 µA @ 100 V
- Capacitance @ Vr, F: 15pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: SMA (DO-214AC)
- Operating Temperature - Junction: -65°C ~ 175°C
Related Products
Vishay General Semiconductor - Diodes Division
VS-1N1202RA
Microsemi Corporation
HS24230
Vishay General Semiconductor - Diodes Division
GF1AHE3/67A
Vishay General Semiconductor - Diodes Division
VS-18TQ045STRRPBF
Vishay General Semiconductor - Diodes Division
GI818HE3/54
Central Semiconductor Corp
1N4002G BK
Diodes Incorporated

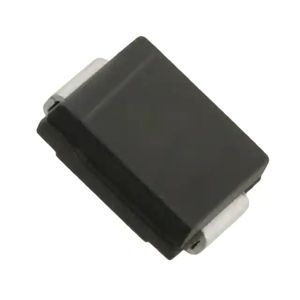

B360-13
Panjit International Inc.

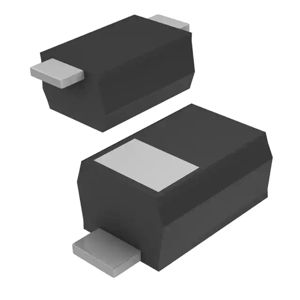

GS1000FL-AU_R1_000A1
Taiwan Semiconductor Corporation

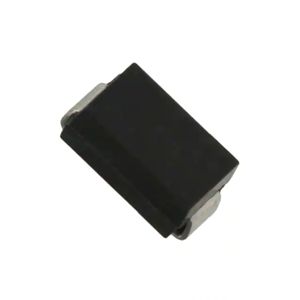

MUR120SHR5G
