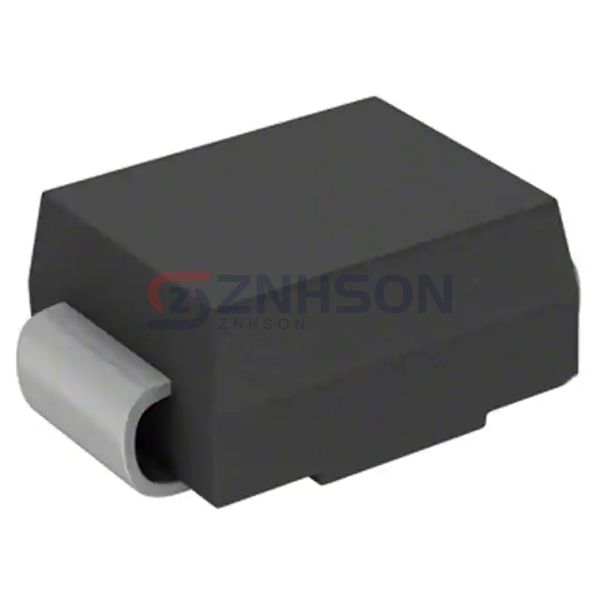

S1G_R1_00001
Panjit International Inc.
Panjit International Inc.
SURFACE MOUNT RECTIFIER
$0.29
Available to order
Reference Price (USD)
1+
$0.29000
500+
$0.2871
1000+
$0.2842
1500+
$0.2813
2000+
$0.2784
2500+
$0.2755
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with the S1G_R1_00001 single rectifier diode from Panjit International Inc.. This diode, part of the Discrete Semiconductor Products family, offers exceptional rectification efficiency and thermal stability. Its compact design and high current capacity make it suitable for space-constrained applications like mobile devices, laptops, and IoT gadgets. The S1G_R1_00001 is also ideal for automotive electronics, including alternators and voltage regulators, where reliability is critical. Panjit International Inc.'s commitment to innovation ensures that the S1G_R1_00001 meets the highest industry standards for performance and longevity.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 400 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 1 A
- Speed: Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 1 µA @ 400 V
- Capacitance @ Vr, F: 12pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB
- Supplier Device Package: SMB (DO-214AA)
- Operating Temperature - Junction: -55°C ~ 150°C
Related Products
Vishay General Semiconductor - Diodes Division
1N5060TR
Semtech Corporation
JANTX1N5806.TR
Vishay General Semiconductor - Diodes Division
RMPG06J-E3/53
Diotec Semiconductor
SK54-AQ
Micro Commercial Co
SS1200-LTP
Rohm Semiconductor
RFN20NS3SFHTL
Vishay General Semiconductor - Diodes Division

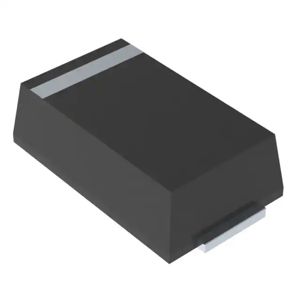

RS1PG-M3/85A
