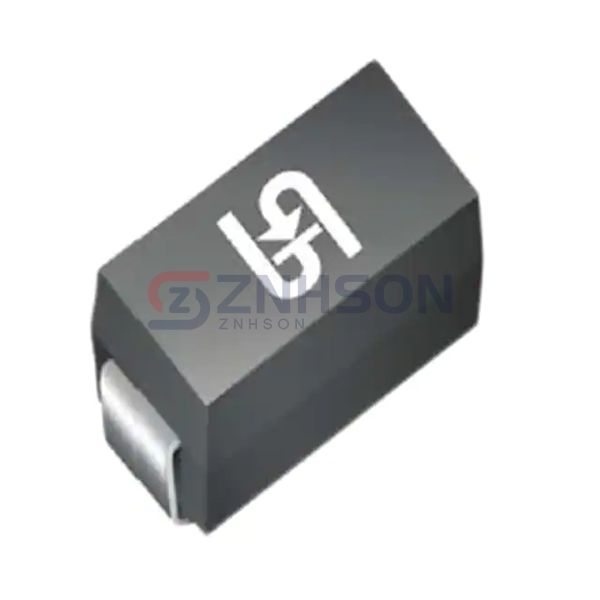

S1M-26R3
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
GLASS PASSIVATED SMD RECTIFIER
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The S1M-26R3 by Taiwan Semiconductor Corporation is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the S1M-26R3 ensures long-term reliability even in harsh operating conditions. Trust Taiwan Semiconductor Corporation for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 1000 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 1 A
- Speed: Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 1.5 µs
- Current - Reverse Leakage @ Vr: 1 µA @ 1000 V
- Capacitance @ Vr, F: 12pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: DO-214AC (SMA)
- Operating Temperature - Junction: -55°C ~ 175°C
Related Products
Vishay General Semiconductor - Diodes Division
ES1PCHE3/85A
Taiwan Semiconductor Corporation

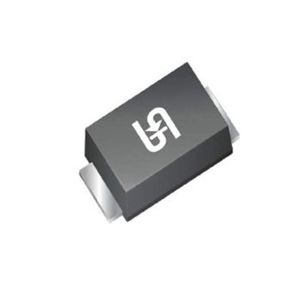

SS115LHRFG
Panasonic Electronic Components
MA2J72700L
Vishay General Semiconductor - Diodes Division

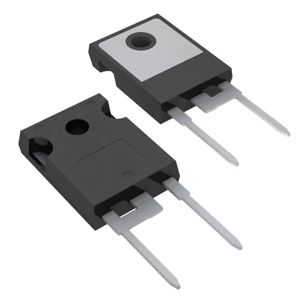

VS-60EPU04HN3
Vishay General Semiconductor - Diodes Division
RGP10DHE3/73
Vishay General Semiconductor - Diodes Division

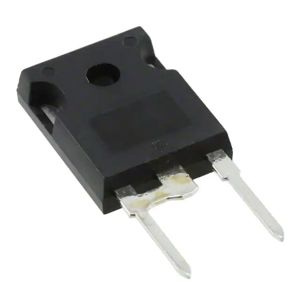

VS-40EPF04PBF
Vishay General Semiconductor - Diodes Division
RGP10DHM3/73
Taiwan Semiconductor Corporation

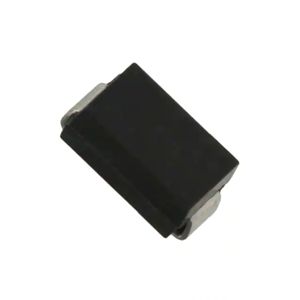

S2GHR5G
Micro Commercial Co

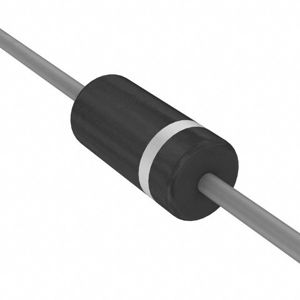

RL255M-TP
