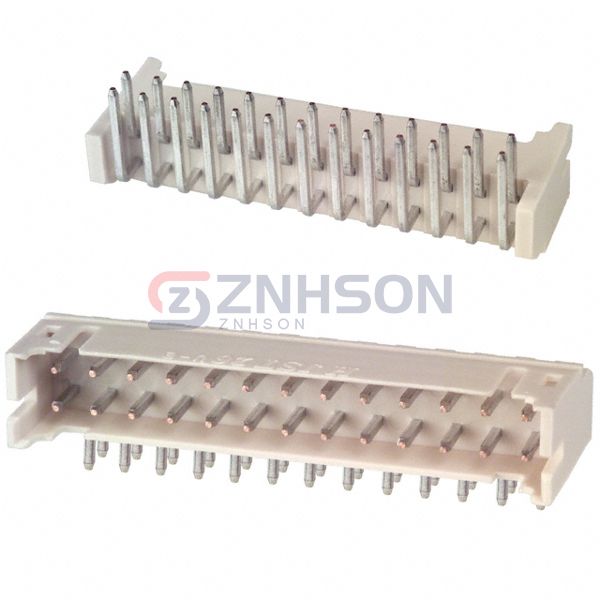

S26B-PHDSS(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER R/A 26POS 2MM
$1.11
Available to order
Reference Price (USD)
1+
$1.06000
10+
$0.92800
100+
$0.80050
500+
$0.65496
1,000+
$0.58219
5,000+
$0.50941
10,000+
$0.48394
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The S26B-PHDSS(LF)(SN) from JST Sales America Inc. is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the S26B-PHDSS(LF)(SN) offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose JST Sales America Inc. for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.114" (2.90mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.197" (5.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: -
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 3A
- Voltage Rating: 250V
Related Products
Samtec Inc.
TSM-113-01-LM-DV-P-TR
Samtec Inc.
FTSH-120-01-S-DV-K-TR
Samtec Inc.
ZSS-110-01-T-D-515-12
Samtec Inc.

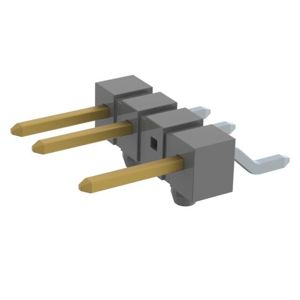

TSM-104-01-S-SH-A-002-P-TR
Samtec Inc.

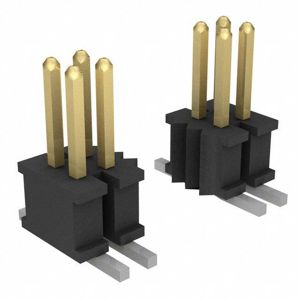

FTSH-120-01-FM-DV-K
Samtec Inc.

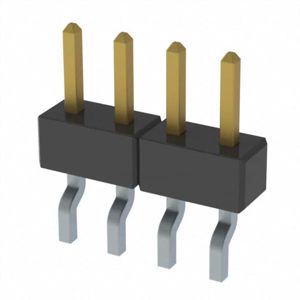

MMT-104-01-SM-SH
Samtec Inc.

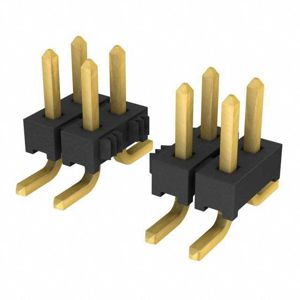

TMM-125-05-G-D-SM
TE Connectivity AMP Connectors

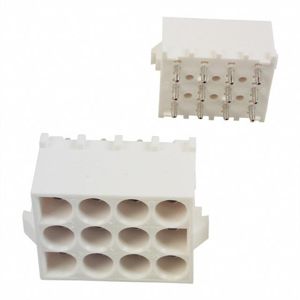

350433-4
HARTING

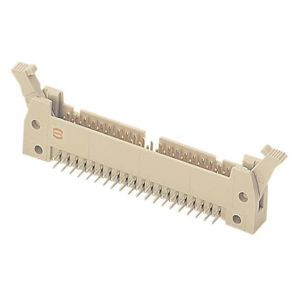

09185267901
