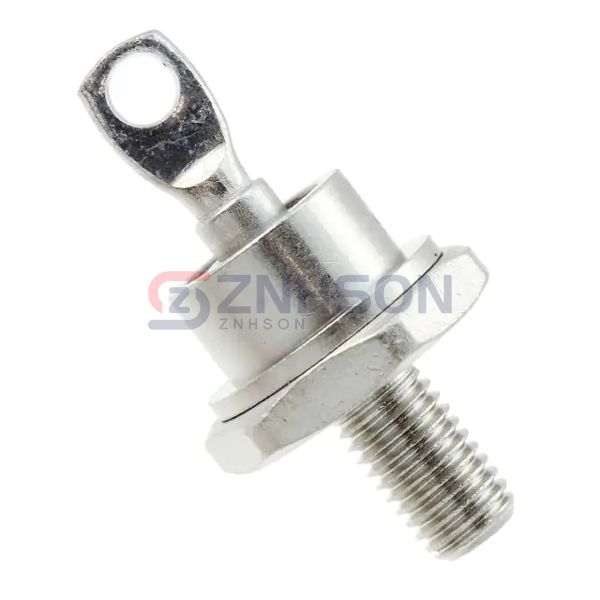

S3480
Microchip Technology
Microchip Technology
DIODE GEN PURP 800V 45A DO203AB
$53.01
Available to order
Reference Price (USD)
1+
$54.04000
10+
$50.53300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The S3480 from Microchip Technology is a high-performance single rectifier diode designed for efficient power conversion in various electronic applications. As part of the Discrete Semiconductor Products category, this diode ensures reliable and fast switching, making it ideal for power supplies, inverters, and converters. Its robust construction and low forward voltage drop minimize energy loss, enhancing overall system efficiency. Common applications include AC/DC conversion, voltage clamping, and reverse polarity protection in automotive, industrial, and consumer electronics. Trust Microchip Technology's S3480 for superior performance and durability in demanding environments.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 800 V
- Current - Average Rectified (Io): 45A
- Voltage - Forward (Vf) (Max) @ If: 1.15 V @ 90 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 10 µA @ 800 V
- Capacitance @ Vr, F: -
- Mounting Type: Stud Mount
- Package / Case: DO-203AB, DO-5, Stud
- Supplier Device Package: DO-203AB (DO-5)
- Operating Temperature - Junction: -65°C ~ 200°C
