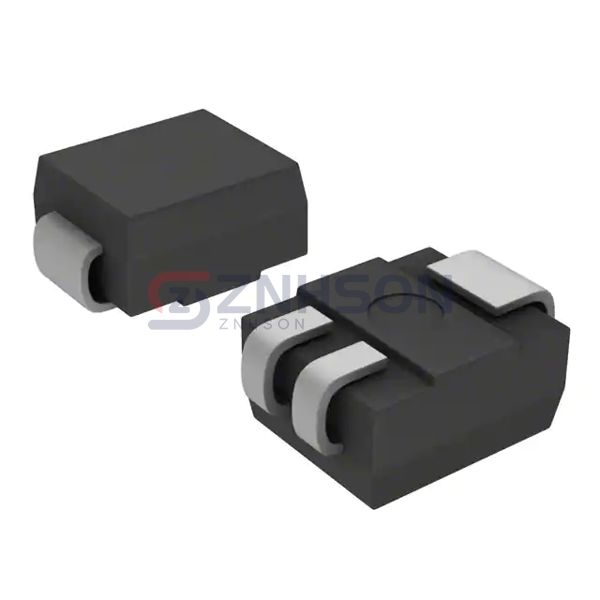

S4N1RP
Littelfuse Inc.
Littelfuse Inc.
SCR 400V 1A COMPAK
$1.23
Available to order
Reference Price (USD)
2,500+
$0.42840
5,000+
$0.40880
12,500+
$0.39480
25,000+
$0.38360
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the S4N1RP SCR by Littelfuse Inc. represents the pinnacle of Thyristor technology within Discrete Semiconductor Products. Featuring symmetrical voltage blocking and low holding current, it's ideal for AC switching applications. From home appliances like washing machines to critical infrastructure such as grid stabilization systems, this component shines. Littelfuse Inc.'s rigorous testing protocols ensure the S4N1RP exceeds performance expectations.
Specifications
- Product Status: Active
- Voltage - Off State: 400 V
- Voltage - Gate Trigger (Vgt) (Max): 1.5 V
- Current - Gate Trigger (Igt) (Max): 10 mA
- Voltage - On State (Vtm) (Max): 1.6 V
- Current - On State (It (AV)) (Max): 640 mA
- Current - On State (It (RMS)) (Max): 1 A
- Current - Hold (Ih) (Max): 30 mA
- Current - Off State (Max): 10 µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 25A, 30A
- SCR Type: Standard Recovery
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB (3 Leads), Compak
- Supplier Device Package: Compak
