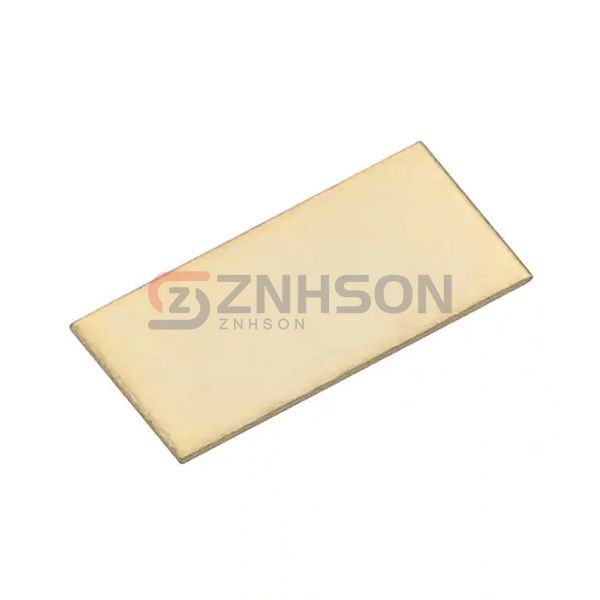

S70-138181045R

Harwin Inc.

Manufacturer

Harwin Inc.

Description:

CONTACT SMD GOLD

Datasheet:

S70-138181045R Datasheet

$0.51

Available to order

Reference Price (USD)

2,000+

$0.21414

4,000+

$0.20640

6,000+

$0.19350

10,000+

$0.18060

14,000+

$0.17415

50,000+

$0.16770

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Harwin Inc.'s S70-138181045R represents the next evolution in Pressure Contacts technology, offering micro-miniature solutions down to 0.3mm diameter. These ultra-fine-pitch Spring Loaded Contacts enable high-speed signal transmission (up to 40GHz) for millimeter-wave testing and high-frequency PCB probing. The category distinguishes itself with ceramic-insulated variants for RF applications and temperature-compensated springs for thermal cycling environments. Critical uses include quantum computing research setups, phased array antenna testing, and microLED display repair stations. Specific deployments feature in satellite payload verification systems and neural probe interface boards. Choose S70-138181045R when your application demands sub-millimeter precision with >1,000,000 cycle endurance.

Specifications

Product Status: Active
Contact Type: Contact Pad
Mounting Type: Surface Mount
Maximum Working Height: -
Recommended Working Height: -
Minimum Working Height: -
Pad Layout Dimension: Rectangular - 0.150" L x 0.071" W x 0.004" H (3.80mm x 1.80mm x 0.10mm)
Operating Force - Initial: -
Operating Force - Mid Compression: -
Plunger Size: -
Features: -
Mating Cycles: -
Contact Material: Beryllium Copper
Contact Finish: Gold
Contact Finish Thickness: Flash
