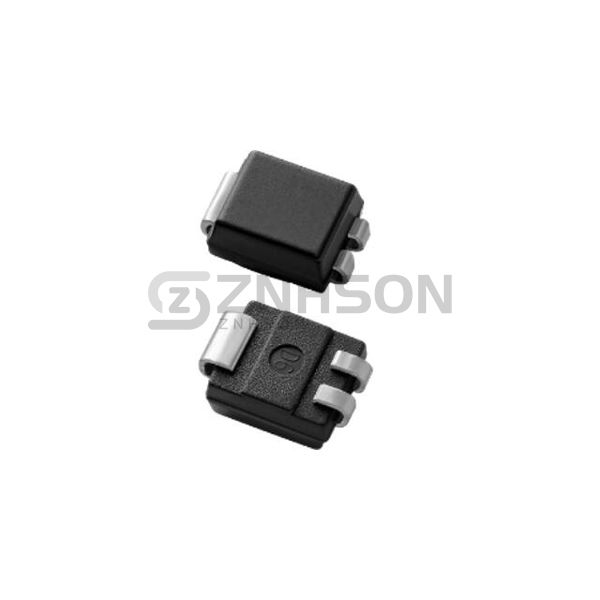

S802CS1RP
Littelfuse Inc.
Littelfuse Inc.
SCR 800V 1.25A DO214
$1.63
Available to order
Reference Price (USD)
2,500+
$0.56610
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The S802CS1RP Silicon Controlled Rectifier by Littelfuse Inc. is a premium Discrete Semiconductor Product designed for precision power management. With excellent thermal performance and high blocking voltage, this SCR is perfect for harsh operating conditions. Applications span from renewable energy systems to industrial motor drives and battery chargers. For instance, it's widely used in solar inverters and wind turbine controls. Choose Littelfuse Inc.'s S802CS1RP for unmatched reliability and efficiency.
Specifications
- Product Status: Active
- Voltage - Off State: 800 V
- Voltage - Gate Trigger (Vgt) (Max): 800 mV
- Current - Gate Trigger (Igt) (Max): 50 µA
- Voltage - On State (Vtm) (Max): 1.7 V
- Current - On State (It (AV)) (Max): 800 mA
- Current - On State (It (RMS)) (Max): 1.25 A
- Current - Hold (Ih) (Max): 3 mA
- Current - Off State (Max): 1 µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 16A, 20A
- SCR Type: Sensitive Gate
- Operating Temperature: -40°C ~ 110°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB (3 Leads), Compak
- Supplier Device Package: Compak
