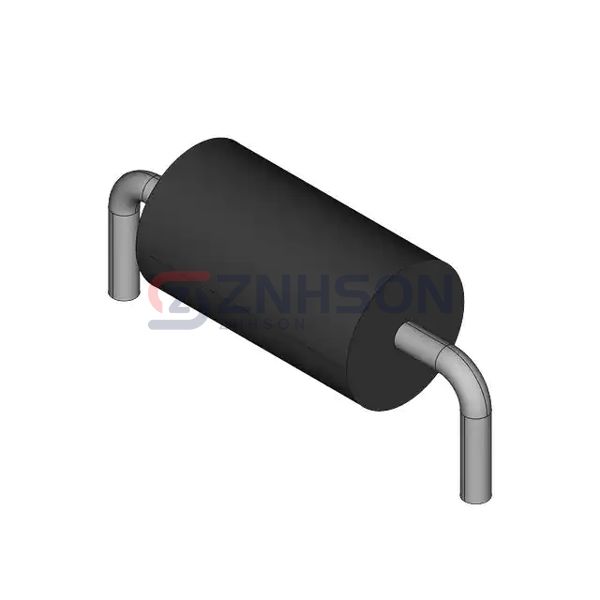

SB320
Fairchild Semiconductor
Fairchild Semiconductor
RECTIFIER, SCHOTTKY, 3A, 20V
$0.14
Available to order
Reference Price (USD)
1+
$0.14000
500+
$0.1386
1000+
$0.1372
1500+
$0.1358
2000+
$0.1344
2500+
$0.133
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SB320 by Fairchild Semiconductor is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the SB320 ensures long-term reliability even in harsh operating conditions. Trust Fairchild Semiconductor for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 3A
- Voltage - Forward (Vf) (Max) @ If: 490 mV @ 3 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 500 µA @ 20 V
- Capacitance @ Vr, F: -
- Mounting Type: Through Hole
- Package / Case: DO-201AA, DO-27, Axial
- Supplier Device Package: DO-201
- Operating Temperature - Junction: -50°C ~ 150°C
